Multi-Function Digital Counter - MS6100

Product Specification

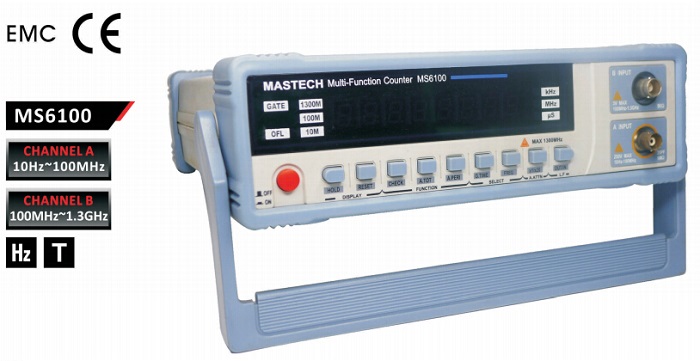

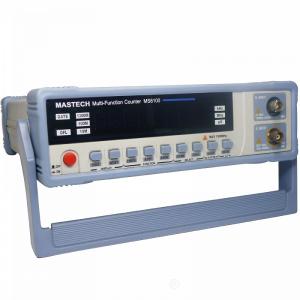

MS6100 - Multi-Function Digital Counter

This is an intelligent multiple function digital counter. It is controlled by an 8-Bit microcontroller and with eight-digit LED high bright display. Four measuring functions of frequency, period, totals and self-check are involved in this counter. There is a 10MHz OSC.OUT. The input signal can be conditioned by attenuation.Two kinds of power 110VAC and 220VAC can be supplied to the instrument. The user can conveniently select it. This instrument has been designed according to IEC1010-1 concerning safety requirements.

MS6100 Multi-Function Digital Counter Features
? Display 8 digits (22000 counts), about 10mm high red LED display with decimal point
? Power Requirement  AC 198~264V 50/60Hz  / AC 90~132V 50/60Hz
? Operating Temperature  0°C~40°C
? Storage Temperature  -10°C~50°C
? Relative Humidity    20%~80%RH (0°C~40°C)
? Low Pass Filter ~100kHz, -3dB
                        ~150kHz, -3dB at ATTN condition
? Data Hold
? Self Check
? Overrange Indications
? OSC. Out  10MHz

MS6100 Multi-Function Digital Counter General Specifications

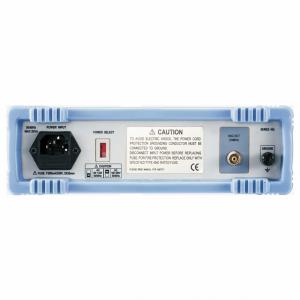

? Power Supply: 220V/110V AC
? Product Size: 300mm x 260mm x 74mm / 11.8" x 10.2" x 2.9"
? Product Weight: 1850g/4.02lb
? Certificate: RoHS

MS6100 Multi-Function Digital Counter Resolution and Accuracy
Frequency measurements
