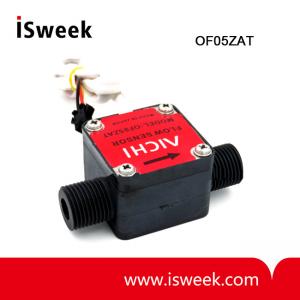

Oil Flow Sensor - OF05ZAT
Accuracy: ±2% FS
Maximum operating pressure: 0.5MPa @ 20℃
Operating temperature: 0-70℃
Flow range: 10L/min
Pulse unit: 2.5ML/P
Power supply: 3.5-12V
Output signal: pulse voltage
- Model Number: OF05ZAT
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
OF05ZAT Oil Flow Sensor Description
This product has wide working voltage. Pulse output. Interface size selectable. Mainly used in milk, chemicals, paint, detergent and other large concentrations of liquid measurement.
OF05ZAT Oil Flow Sensor SPECIFICATION
|
model |
OF05ZAT |

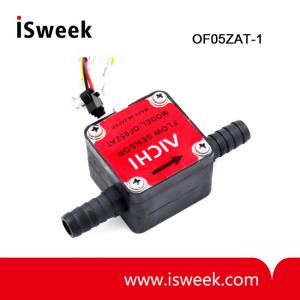

OF05ZAT-1 |
|
Measurable fluid |
water, light oil, heavy oil, etc |
water, light oil, heavy oil, acid, etc |
|
Accuracy |
±2% FS |
|
|
Maximum operating pressure |
0.5MPa @ 20℃ | |
|
Operating temperature |
0-70℃ |
|
|
Flow range |
10L/min |
|
|
Pulse unit |
2.5ML/P |
|
|
Power supply |
3.5-12V |
|
|
Output signal |
pulse voltage |
|
|
connection |
R1/2 (mate thread) |
13mm |
