PCB Current Transformer - CR8750 Series

Product Specification

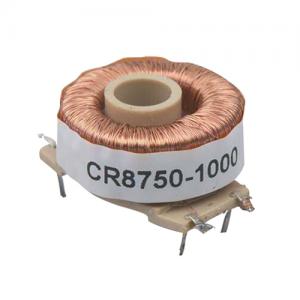

The CR8750 Series, PCB Current Transformer provides a low cost method for monitoring electrical current. The transformer is intended to be mounted on a  Printed Circuit Board with the current-carrying wire routed through the center window opening. A five-pin, non-symmetrical mounting pattern ensures correct orientation to the PCB. Two different winding ratios are available to accommodate various applications.

CR8750 Series PCB Current Transformer Features
? Low cost
? 2 different turns ratio
? Non-contact, isolated measurement

CR8750 Series PCB Current Transformer Specifications
? Construction: Core secure via Epoxy resin
? Operating Temperature: -40°C to +85°C
? Stroage Temperature: -45°C to +85°C
? High Potential: 3500 Vac/1 min.
? Frequency: 50 Hz to 60 Hz

CR8750 Series PCB Current Transformer Applications
? Ammeters
? Current measurements
? Watt/VAR/Watthour measurement

CR8750 Series PCB Current Transformer PART NUMBERS
