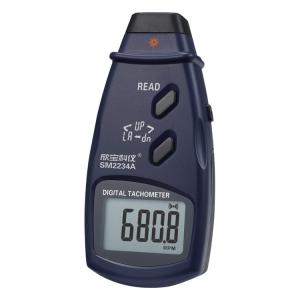

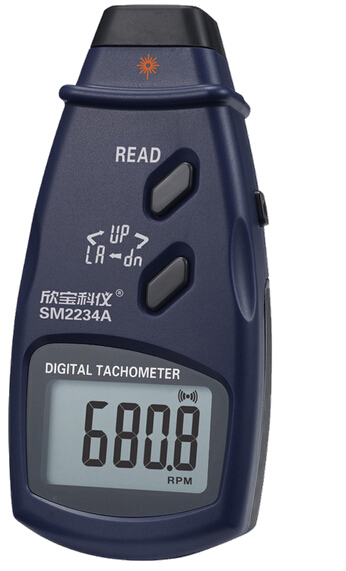

Photo Tachometer (Laser) - SM2234A
? Display 5digit 18mm LCD
? Detecting Distance: 50mm-500mm
? Range: 2.5~99999 RPM
? Resolution: 0.1 RPM From:(2.5~999.9RPM); 1 RPM From:((above 1000RPM)
? Accuracy: ±(0.05%+1 digital) of readin
? Sampling Time: 0.8 second (over 60 RPM)
? Range Select: Auto-range
? Time Base: 6MHz Quartz crystal
- Model Number: SM2234A
- Data Sheet:
- Quantity:
- - +
Product Specification
SM2234A Photo Tachometer (Laser)
Display 5 digit 18mm LCD
Range: 2.5~99999 RPM
Resolution: 0.1 RPM From: (2.5~999.9 RPM)
1 RPM From: (above 1000 RPM)
Accuracy: ±(0.05%+1 digital) of readin
Sampling Time: 0.8 second (over 60 RPM)
Range Select: Auto-range
Time Base: 6MHz Quartz crystal
Memory: Max. value, Min. value, Last value. Can store 96s data.
Detecting Distance: 50mm-500mm
Dimension: 155*70*35mm
Power: 3 x 1.5V AAA battery
