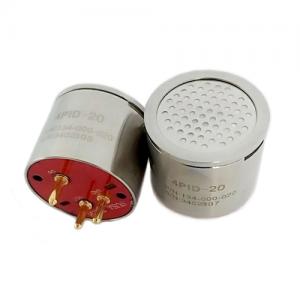

Photoionization Sensor (PID sensor) TVOC Detection - 4PID-20

Product Specification

Photoionization Sensor (PID sensor) TVOC Detection

4PID-20 Photoionization Sensor (PID sensor) Basic Characteristics
? Working principle: PID
? Measurement range: 0~20ppm
? Resolution: 5ppb
? Accuracy: <±2% (Calibration Point)
? Operating Temperature Range: -40~50°C
? Operating Humidity Range: 0~99% ( No condensing)
? Operating Pressure Range: 800~1200mbar

4PID-20 Photoionization Sensor (PID sensor) Electrical Characteristics
? Working Voltage: 3.2~5V
? Zero Voltage: 100±50mV
? Output: 1.8~3V
? Safe Approval: Ex is Pending

4PID-20 Photoionization Sensor (PID sensor) Lifetime
? Recommending Storage Temperature: 0~20°C
? Operating Life: minimum 5 years ( not include UV lamp and detector)
? UV lamp Life: minimum 10000 hours
? Warranty: 12 months

4PID Photoionization Sensor Product & Performance Classification(10.6eV)-4R:
