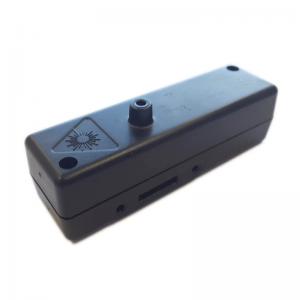

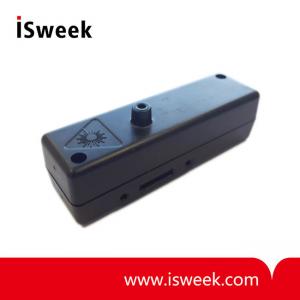

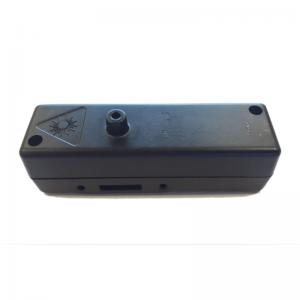

PM2.5 Particle Sensor - OPC-R1

? Particle range: 0.4 to 12.4 Spherical equivalent size
? Reports PM1, PM2.5, PM10 plus histograms
? PC software supplied
? Removable fan exit adaptor
? Small size and low power consumption
? Configurable to specific applications

  • Model Number: OPC-R1
  • Data Sheet: Date Sheet File
Quantity:
- +
  • PM2.5 Particle Sensor
  • PM2.5 Particle Sensor
  • PM2.5 Particle Sensor
  • PM2.5 Particle Sensor
Mouse over image to zoom
Share:

Product Specification

OPC-R1 PM2.5 Sensor Schematic Diagram


? Reports PM1, PM2.5, PM10 plus histograms
? PC software supplied
? Removable fan exit adaptor
? Small size and low power consumption
? Configurable to specific applications


OPC-R1 PM2.5 Sensor MEASUREMENT
Particle range
 Spherical equivalent size (based on RI of 1.5)
 0.4 to 12.4
Size categorisation
 Number of software bins
 16
Sampling interval
 Histogram period (seconds)
 1 to 30
Total flow rate
 L/min (typical)
 1.6
Max particle count rate
 particles/second
 10,000
Max coincidence probability
 %concentration at 10 6 particles/L
 0.84

%concentration at 500 particles/L
 0.24



OPC-R1 PM2.5 Sensor POWER
Measurement mode
 mA (typical)
 95
Laser on, fan off
 mA (typical)
 < 5
Voltage range
 VDC
 4.8 to 5.2
Switch-on transient
 mW for 1ms
 < 5000



OPC-R1 PM2.5 Sensor KEY SPECIFICATIONS
Digital interface
 (No data storage)
 SPI Mode 1
Laser classification
 as enclosed housing
 Class 1
Temperature range
 °C
 -10 to 50
Humidity range
 % rh (continuous)
 0 to 95 (non-condensing)
Weight
 g
 < 30
