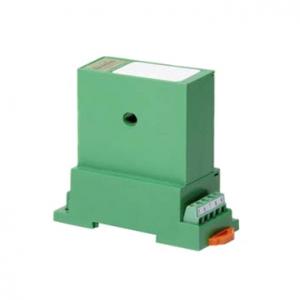

Power Factor Transducer - CR6320

Current: AC Current
Voltage Type: AC Voltage
Frequency: AC Frequency
RMS: N/A
Elements: Single Element
Outputs: 4-20 mA DC
Power: 24 Vdc Power
Power Factor: Power Factor
Mount: DIN Rail Mount, Panel Mount

Model Number: CR6320
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

CR6320 Power Factor Transducers are designed to sense the Phase Angle difference between AC Current and Voltage signals.

CR6320 Power Factor Transducer Features
? DIN Rail or Panel Mount
? Up to 600Vac Input Voltage
? Up to 25 AAC Input Current
? Extend the ranges wih External CT's and PT's
? Measure -90 to +90 Phase Difference
? 4-20 mAdc Output
? Connection diagram printed on case

CR6320 Power Factor Transducer Specifications
? Insulation Voltage: 2500 VDC
? Output Load: 0-300 Ω
? Frequency Range: 50Hz-400Hz
? Basic Accuracy: 0.5%
? Power Source: 12 to 24 VDC
? Response Time: 250 ms
? MTBF: Greater than 100 K hours
? Thermal Drift: 500 PPM/°C
? Operating Temperature: 0°C to +60°C

CR6320 Power Factor Transducer Applications
? Motor Loading
? Correct Power Factor
? Measure Timing

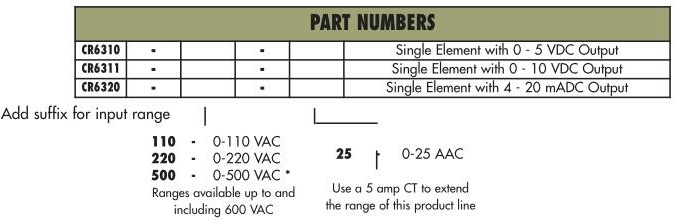

CR6320 Power Factor Transducer PART NUMBERS
