Pre-calibrated Module for Refrigerant Gases R-32 - FCM2630-C01
Factory calibrated
Temperature compensation circuit
Resistant to interference gases
Analog output
Meets IEC60335-2-40 and JRA4068 requirements
- Model Number: FCM2630-C01
- Data Sheet:
- Quantity:
- - +
Product Specification
Pre-calibrated Module for Refrigerant Gases R-32 FCM2630-C01?Product Description：

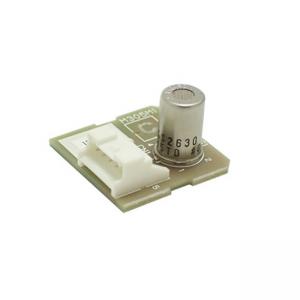

FCM2630-C01 is an embedded type module using the semiconductor gas sensor TGS2630 which is optimized to detect A2L refrigerant gas R-32. This module enables users to easily build a reliable gas leakage detection system by eliminating electronic circuit design for temperature compensation and the calibration process. In addition, a connector allows easy replacement of the gas sensor module for periodic maintenance.
FCM2630-C01 is capable of satisfying the IEC60335-2-40 Edition 6.0 Annex LL and the JRA4068:2021 (Performance 3) standards. The applicable standards are both limited to refrigerant gas type R-32.
Factory calibrated
Temperature compensation circuit
Resistant to interference gases
Analog output
Meets IEC60335-2-40 and JRA4068? requirements
Refrigerant gas leak detection in air conditioning/refrigeration systems

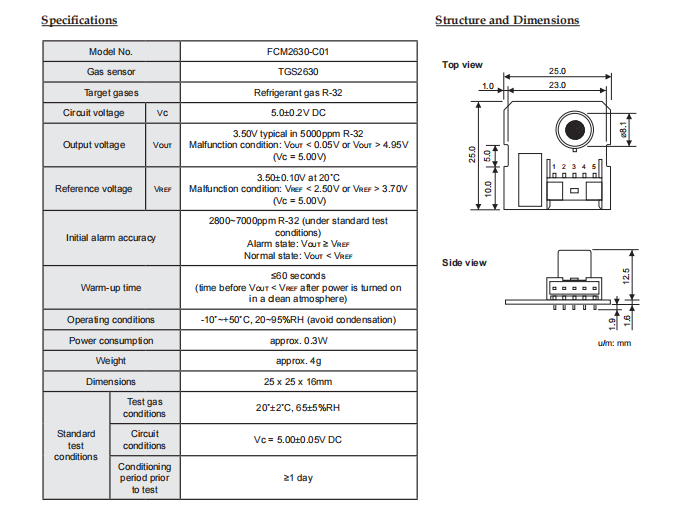

Pre-calibrated Module for Refrigerant Gases R-32?FCM2630-C01?Technical Specification：
