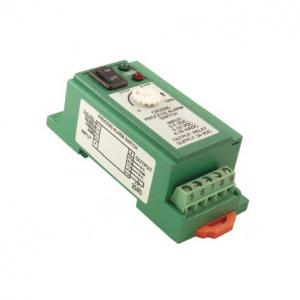

Process Alarm Switch for 0-5Vdc, 0-10Vdc and 4-20mAdc Input - CR3595
+24 VDC +/-10% Power Supply
Input: 0-5Vdc, 0-10Vdc, 4-20 mADC
Operating Temperature: 0 to 50°C
Current: AC Current,DC Current
Normally Open or Closed: Normally Open, Normally Closed
Power: 4-20 mA DC
- Model Number: CR3595
- Data Sheet:
- Quantity:
- - +
Product Specification
The CR3595 Series Process Alarm Switch provides an effective method for signaling alarm status. This Process Alarm Switch can be fed by any 0-5Vdc, 0-10Vdc or 4-20mAdc process signal. Complete with Green Heartbeat LED and when the signal exceeds the set point the Red LED illuminates and the relay becomes energized.
CR3595 Process Alarm Switch Features
? 35mm DIN Rail or Panel Mountable
? Adjustable Dial for Setting Trip Point
? Super Bright Red LED Indicator for Alarm Status
? Fully Isolated Input from Power Supply and Output
? Connection Drawing Printed on Case
CR3595 Process Alarm Switch Specifications
? +24 VDC +/-10% Power Supply
? Form C Relay, 8A @ 250 VAC, 10A @ 125 VAC, 5A @ 30 VDC
? Input: 0-5Vdc, 0-10Vdc, 4-20 mADC
? Operating Temperature: 0 to 50°C
CR3595 Process Alarm Switch Applications
? Process Control Systems
? Reporting of Alarm Conditions
? Monitor Heater Status
? Monitor Motor Operation
