Radiation Detector - BG500

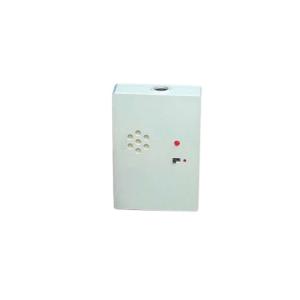

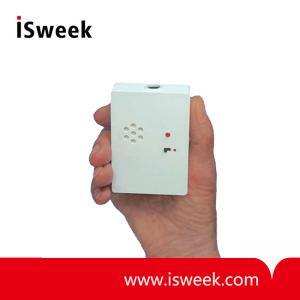

The BG500 is a portable radiation detector that is easy to use and provides real time feedback on nuclear radiation activity. A Teviso BG51 solid-state PIN diode sensor is used to detect beta radiation (electrons), gamma radiation (photons) and X-rays.

Model Number: BG500
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Description

Application

The BG500 radiation detector is recommended for the following applications, among others:

1.Education on nuclear physics: Measurement of the amount of ionising radiation emitted by radioactive materials. Experiments to study the properties of nuclear radiation.

2.Medical: Detection and measurement of the presence of radiation and radioactive material.

3.Environmental monitoring: Monitoring the environment for radioactive contamination, e.g. in soil, air and water.

4.Personal radiation dosimetry: Checking the radiation exposure of people working in radiation-relevant industries such as medical facilities, research laboratories and nuclear power plants.

5.Safety Inspection: Examination of persons and cargo for radioactive substances.

6.Alerting: Used by first responders and safety officers to monitor harmful radiation in real time.

Specifications

Measurement Range interpretation)	0.2 μSv/h to 1200 μSv/h (by acoustic 0.1 μSv/h to 100 mSv/h (using Signal Interface)
Pulse Rate vs. Radiation Rate	5 ppm (pulse per minute) ±15% for 1μSv/h
Sensor Energy Response	70 keV to beyond 2 MeV
Power Supply	9 V Block-Battery
Supply Current	8 mA
Operating Time	150 hours with 9 V quality battery
Operating Temperature Range	-20℃ to 50℃
Dimensions	W : 57mm L : 78mm H : 20mm
Weight	85g
