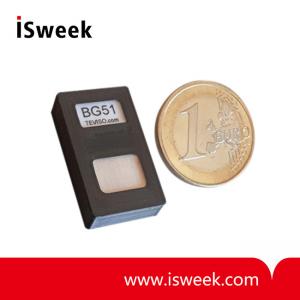

Radiation Sensor - BG51

? Detects beta and gamma radiation and X-rays
? New: Ultra low power requirement (25μA)
? Detector sensitivity: 5 cpm/μSv/h
? High immunity to RF and electrostatic fields
? Linear response over wide temperature range (-30℃ to 60℃)
? Swiss made

Model Number: BG51
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Description

The function of the BG51 radiation sensor is based on an array of customized PIN diodes. The integrated pulse discriminator with a temperature compensated threshold level provides true TTL signal output. The BG51 is capable of detecting beta radiation (electrons), gamma radiation (photons) and X-rays.

The performance of the BG51 solid state sensor, in combination with high immunity to electrostatic fields make it a good choice for new state-of-the-art designs as well as for upgrading existing designs.

Features and Benefits

? Detects beta and gamma radiation and X-rays

? New: Ultra low power requirement (25μA)

? Detector sensitivity: 5 cpm/μSv/h

? High immunity to RF and electrostatic fields

? Linear response over wide temperature range (-30℃ to 60℃)

? Swiss made

Application Areas

? Equipment for detecting radioactivity in medical environment

? Radiation monitors for nuclear safeguards and security

? Gamma detector to detect illicit nuclear material

? Natural sciences courses and practical lab experiments

Absolute Maximum Ratings

Supply voltage, V_CC to GND	18.0V
Output short-circuit current	continuous
Storage temperature range	-65℃ to 100℃

Electrical characteristics

Unless otherwise indicated specified at：V_CC = 4.0V, T_A = 25℃
Measurement range of dose rate	0.1 μSv/h to 100 mSv/h
Pulse count rate	5 cpm ± 15% for 1 μSv/h radiation dose rate
Energy response	50 KeV to above 2 MeV
Output pulse level Output pulse width	Equal to supply voltage (positive going) 50 μs to 200 μs (LOW→HIGH→LOW)
Supply voltage range, V_CC Supply current, I_S	2.5V to 12.0V 25μA TYP
Operating temperature range	-30℃ to 60℃
