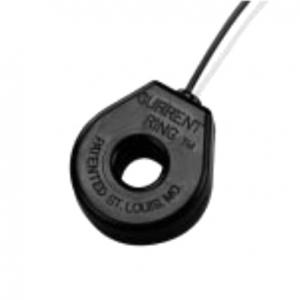

Remote Electrical Current Indicator - Model 19
? Low cost
? Non-contact, isolated measurement
? Case Material: Black Thermoplastic
? Construction: Epoxy Encapsulated
? Maximum Continuous Primary Current 4 X Ir.
? Insulation Voltage: 3500 Vac/1min.
- Model Number: Model 19
- Data Sheet:
- Quantity:
- - +
Product Specification
CR Magnetics offers a versatile line of rugged wire lead current transformers. Installed around a current-carrying wire, the sensor provides a current output relative to the AC input current (within specification limits). With the output connected across a resistive load (burden), the voltage developed is proportional to the input current.
Model 19 Remote Electrical Current Indicator Features
? Low cost
? Non-contact, isolated measurement
Model 19 Remote Electrical Current Indicator Specifications
? Case Material: Black Thermoplastic
? Construction: Epoxy Encapsulated
? Maximum Continuous Primary Current 4 X Ir.
? Insulation Voltage: 3500 Vac/1min.
Model 19 Remote Electrical Current Indicator Applications
? Remote Monitoring of Electrical Loads.
? Input to electrical control system.
? Detect open heater elements
? Indicate Phase Loss
? Monitor Motor Operation.
ORDER INFORMATION
|
Part Number |
Description |
|
Model 19 |
Current Transformer with .29 dia. opening, 230 turns |
