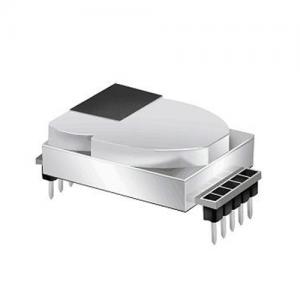

Single Beam Infrared Carbon Dioxide Sensor NDIR CO2 Sensor Module - CM1106

Product Specification

CM1106 Carbon Dioxide Sensor NDIR CO2 Sensor Module Introduction
Single Beam(single light source, single wavelength) NDIR CM1106 (Miniature size) can be used to detect CO2 concentration of indoor air by adopting advanced non-dispersive infrared technology(NDIR). It is widely used in IAQ monitor, air conditioner with purifying function, air purifier, ventilation system, automotive and other consumer electronic products etc.

CM1106 Carbon Dioxide Sensor NDIR CO2 Sensor Module Features
? Advanced non-dispersive infrared technology(NDIR) with independent intellectual property
? High accuracy: temperature calibration within whole measurement range
? High stability: advanced auto-calibration at background
? Small size and compact structure, easy to install

CM1106 Carbon Dioxide Sensor NDIR CO2 Sensor Module Application
? IAQ monitor
? Air conditioner with purifying function
? Air purifier
? Ventilation system
? Automotive

CM1106 Carbon Dioxide Sensor NDIR CO2 Sensor Module Specification
? Measurement range: 0-2000ppm (extending to 5000ppm, 10000ppm)
? Accuracy: auto-calibration within temperature and concentration range
? Working temperature: -5℃~50℃
? Storage temperature : -20℃~60℃
? Working humidity: 0-95%RH (non-condensing)
? Signal output: UART-TTL, PWM, IIC
? Dimension: 33*19.7*8.9mm
? Maintenance: Auto-calibration
