Single-channel Wall-mounted Control Unit for Toxi& Combustible Gases Detecting - LC-100

Product Specification

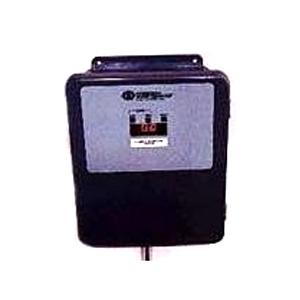

LC-100 SINGLE-CHANNEL CONTROL UNIT

The LC-100 is a stationary, single-channel, wall-mounted control unit for the detection of over 150 different toxic and combustible gases for area air quality and safety applications. The LC-100 can be used with many sensor technologies including Solid State,Electrochemical, Catalytic Bead, Infra-red, and more! A Solid State sensor can be self-contained inside the NEMA enclosure, or any sensor type can be used in conjunction with sensor transmitter (SM95 )or intelligent sensor transmitter (4-20IQ) for use in classifed areas (UL and CSA Classified for Class I, Div. 1, Groups B, C, and D).

    ? Wall-mounted NEMA 4X Weatherproof Enclosure

    ? Dual Alarm LED's and relays. Optional failsafe or latching relays

    ? Optional 4-20 mA output

    ? Digital LED Display

    ? Easy and economical to use

TYPICAL APPLICATIONS FOR THE LC-100:
Carbon Monoxide Monitoring For Breathing Air Systems (Model LC-100-BCO)

 ? Includes a Solid State sensor with a 3 year sensor warranty

 ? Meets OSHA requirements for supply air monitoring

 ? Specially designed sensor and system for compressed breathing air

 ? Simple, reliable, durable, and economical

 ? Alarm points user settable (typically 10 PPM low alarm and 30 PPM high alarm)

 ? High-pressure (120 psi) and low-pressure inputs

Leak Detection For Refrigerants

 ? Can be outfitted with either Solid State or Electrochemical sensor for ammonia detection

 ? New HydroFluoroCarbons (HFC's) can be detected with Solid Statesensors
