Smart Precision Barometer and Altimeter Sensor - HP203B

Product Specification

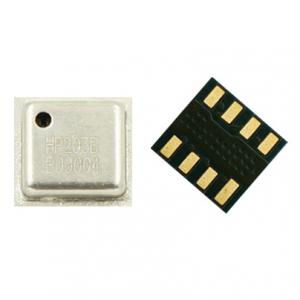

DP203B Smart Precision Barometer and Altimeter Sensor Descriptions

The DP203B employs a MEMS pressure sensor with an I2C inferface eo provide accurate temperature, preesure or altitude data. The sensor pressure and temperature outputdigitized by a high resolution 24-bit ADC. The altitude value is calculated by a specific patented algorithm according to the pressure and temperature data. Data compensation is integrated internally to save the effort of the external host MCU system. Easy command-based data acquisition interface and programmable interrupt control is available. Typical active supply current is 5.3μA per measurement-second while the ADC output is filtered and decimated by 256. Pressure output can be resolved with output in fractions of a Pascal, and altitude can be resolved in 0.1 meter. Package is surface mount with a stainless steel cap and is RoHS compliant.

DP203B Smart Precision Barometer and Altimeter Sensor Features

? Supply voltage: 1.8V to 3.6V
? Pressure rang: 300mbar ~ 1200mbar
? Programmable events and interrupt controls
? Fully data compensated
? Direct Reading, compensated:
  -Pressure: 20-bit measurement (Pascals)
  -Altitude: 20-bit measurement (Meters)
  -Temperature: 20-bit measurement (Degrees Celsius)
? Altitude resolution down to 0.1 meter
? Standby current: <0.1 uA
? Operation temperature: -40 to +85℃
? High-sped I2C digital output interface
? Size: 3.6 mm x 3.8 mm x 1.2 mm

DP203B Smart Precision Barometer and Altimeter Sensor Applications
? Mobile altimeter / barometer
? Smart phones / tablets
? Industrial pressure and temperature sensor system
? Adventure and sports watches
? Weather station equipment
? Indoor navigation and map assist
? Data loggers for pressure, temperature and altitude
? GPS enhancement for emergency services

DP203B Smart Precision Barometer and Altimeter Sensor Mechanical and Electrical Specifications

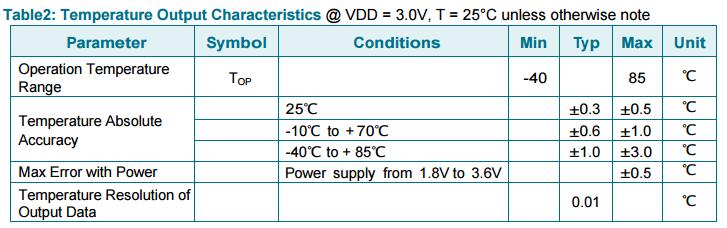

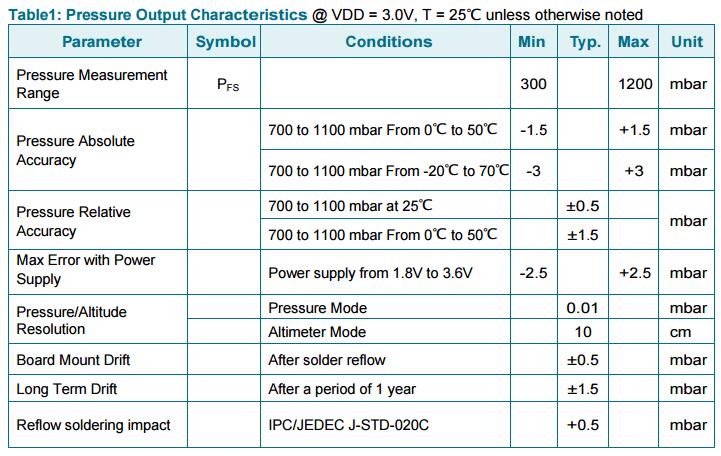

1. Pressure and Temperature Characteristics

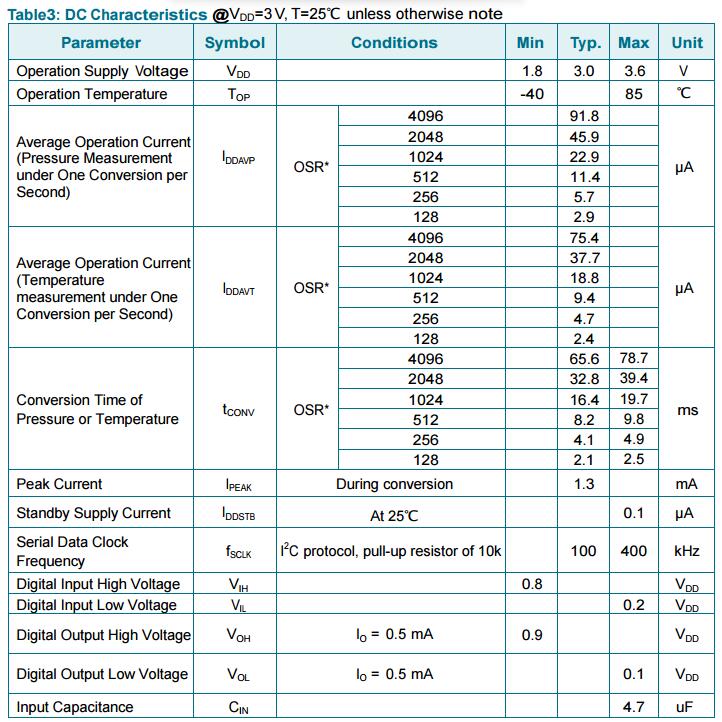

2. Electrical Characteristics

*OSR stands for over sampling rate

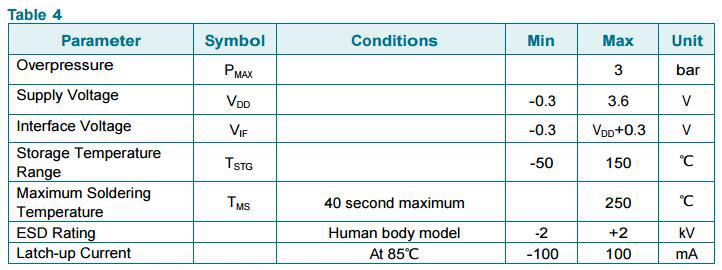

3. Absolute Maximum Rating

Stresses above those listed as 'absolute maximum ratings' may cause permanent damage to the device. This is a stress rating only and functional operation of the device under these conditions is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability
