Smart SDI-12/RS-485 Temperature Sensor - Smart Temp

Product Specification

Smart SDI-12/RS-485 Temperature Sensor?DESCRIPTION
The Smart Temp is a high precision digital temperature sensor that meets USGS guidelines. It features the ability to automatically sample temperature and calculate minimum, maximum, and average temperatures on a flexible time scale.

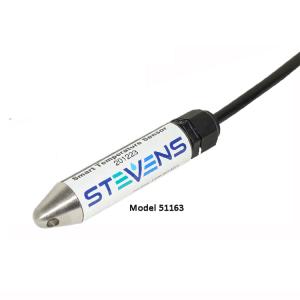

This sensor is ideal for high-accuracy readings in water, soil, and air. It features fully-potted components, robust PVC Type II housing, and marine-grade stainless steel, making the sensor ideal for harsh environments. Model 51163 is small enough to easily deploy through standard 1” (2.5cm) PVC conduit with 8” (20.3cm) factory bend corners. It also offers a loop hole which can be used to mount weights or pull the sensor through pipes or other small areas.

SDI-12 output provides universal compatibility with any SDI-12-enabled data logger and low power applications, or use the standard SDI-12 command set over an RS-485 physical interface for applications that require long cable runs or many sensors.

Smart SDI-12/RS-485 Temperature Sensor?FEATURES
? Automatic minimum, maximum, and average calculations
? RS-485 and SDI-12 interfaces (auto- detecting)
? SDI-12 Ver 1.4 compliant
? Firmware updates through RS-485
? NIST certification available
? High-accuracy temperature measurement
? Extremely low current draw
? Works in water, soil, or air

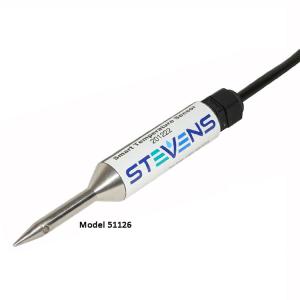

? Durable 316 grade stainless steel tine for easy soil insertion (model 51126)
? Suitable for freshwater or marine applications
? Fully potted electronics
? Tough PVC Type II housing
? Celsius and Fahrenheit output
? No calibration required

Smart SDI-12/RS-485 Temperature Sensor?TECHNICAL SPECIFICATIONS
