Smart SMD Tester (R/C) - MS8910
? Display 3000 counts
? Auto Ranging
? Auto Power Off
? Data Hold
? Low Battery Display
? Auto Scanning
? Diode Check Open Voltage 2.8V
? Diode Testing Current 2mA
? Continuity Buzzer <30?
- Model Number: MS8910
- Data Sheet:
- Quantity:
- - +
Product Specification
MS8910 - Smart SMD Tester (R/C)

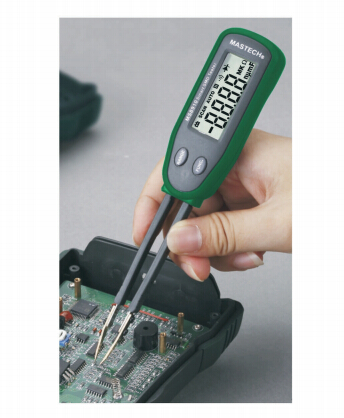

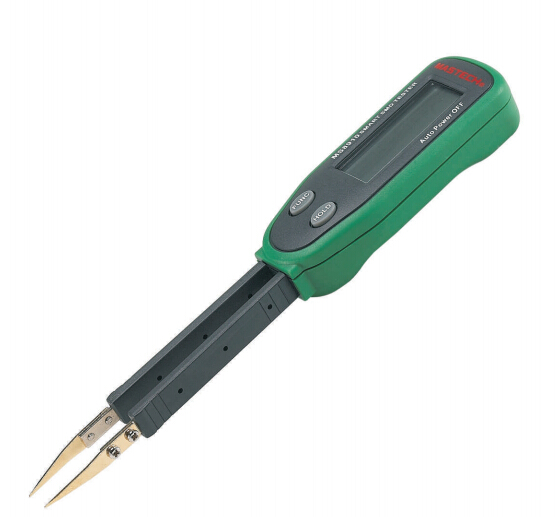

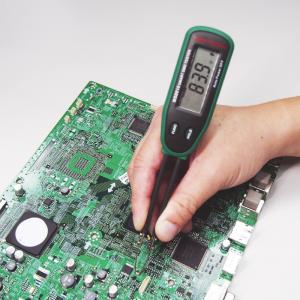

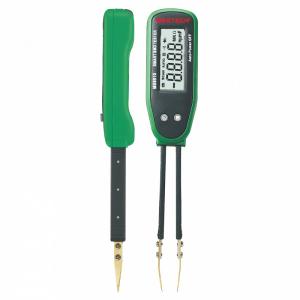

The Tester is a handheld and battery operated very convenient small Tool that is specially used to measuring SMD (Surface Mounting Device), there are Chip type resistor, Chip type capacitor, and diode. Moreover, the Tester also has the continuity checking function.
MS8910 Smart SMD Tester Features
? Display 3000 counts
? Auto Ranging
? Auto Power Off
? Data Hold
? Low Battery Display
? Auto Scanning
? Diode Check Open Voltage 2.8V
? Diode Testing Current 2mA
? Continuity Buzzer <30?
MS8910 Smart SMD Tester General Specifications
? Power Supply: 1 x 3V CR2032 Battery
? Product Size: 175mm x 32mm x 20mm / 6.89" x 1.26" x 0.79"
? Product Weight: 48g/0.10lb
? Certificate: CE / ETL /RoHS

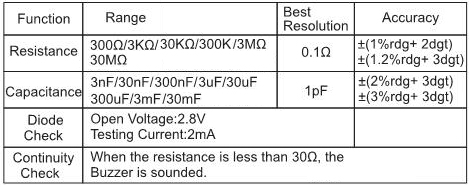

MS8910 Smart SMD Tester Electrical Specifications
