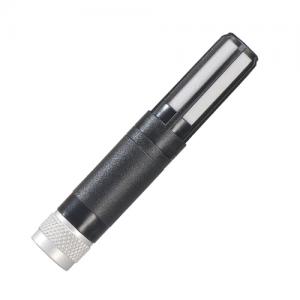

Smart Temperature and Humidity Probe HygroClip2 Sensor probe - HC2-S

Product Specification

HygroClip2 series

Temperature and Humidity Probe

Innovation in humidity and temperature measurement
? Relative humidity, temperature measurement and dew point calculation
? Outstanding accuracy and repeatability
? Excellent long-term stability <1 %RH / year
? Integrated data acquisition and calibration history
? Auto-diagnostics with error compensation
? Programmable alarm functions
? Advanced easy-to-use calibration features
? 100% field interchangeable

The HC2-series are digital humidity-temperature probes based on the AirChip 3000 technology.

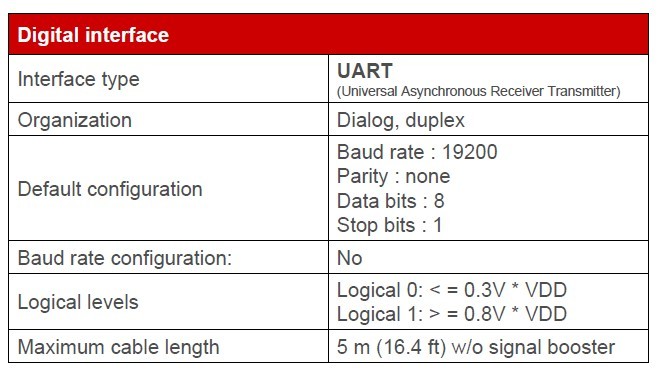

These probes feature a UART serial interface and two 0…1 V linear analog output signals.

The HC2 probes are designed for use with the HygroClip 2 generation of ROTRONIC humidity-temperature instruments: hand-held and bench top indicators, data loggers, transmitters, hygrostats, etc…

The HC2 probes maintain all of the benefits of the original HygroClip technology such as the possibility of hot-swapping probes. Also significant improvements in the area of measurement accuracy and functionality are integrated.

The HC2 probes can also be used as a stand-alone device featuring: Analog output signals and Digital interface (UTAT)

The HC2 probes offer the following user functions:

? Calculation of the dew or frost point
? Humidity temperature calibration and adjustment
? Simulator mode
? Automatic humidity sensor test and drift compensation
? Sensor failure mode
? Data recording
