SMD Gage Pressure sensor Module - MS5536C

Product Specification

MS5536C

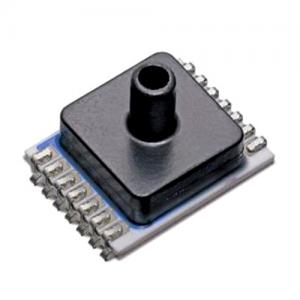

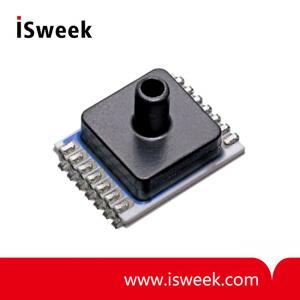

SMD Gage Pressure Module

MS5536C SMD Gage Pressure Module Specifications
? Pressure range -400 to 1000 mbar (Optional -1000 to 400 mbar)
? 0.1 mbar resolution (16 bits)
? Factory Calibrated (coefficients for software compensation stored on-chip)
? 3-wire serial interface
? Low Voltage  / low power

MS5536C SMD Gage Pressure Module Description
MS5536C is a family of high-resolution factory calibrated pressure sensors. The devices include a piezoresistive pressure sensor and an ADC-Interface IC. The 3-wire serial interface ensures simple communication with any microcontroller. The devices provide digital pressure and temperature information as 16-Bit data word each. In addition 64-Bit of individually calibrated compensation coefficients are stored allowing for a highly accurate software compensation of process spread and temperature effects.

The devices have a very low standby current and automatically enter power down mode after each conversion. The optimum compromise of refresh rate and average current consumption can be defined by the application software.

MS5536C SMD Gage Pressure Module Features
? 16-Bit ADC Resolution
? Supply voltage 2.2 V to 3.6 V
? Low supply current
? -40°C to +60°C
? Small size
? No external components required

MS5536C SMD Gage Pressure Module Applications
? Medical application
? Blood pressure meter
? Air flow measurement
? HVAC application

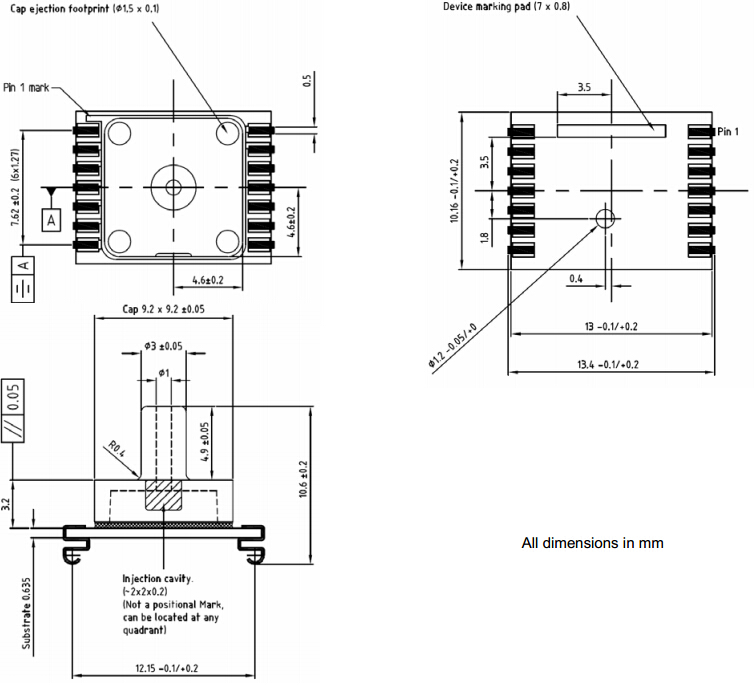

MS5536C SMD Gage Pressure Module Device Package Outlines

MS5536C SMD Gage Pressure Module Ordering Infomation
