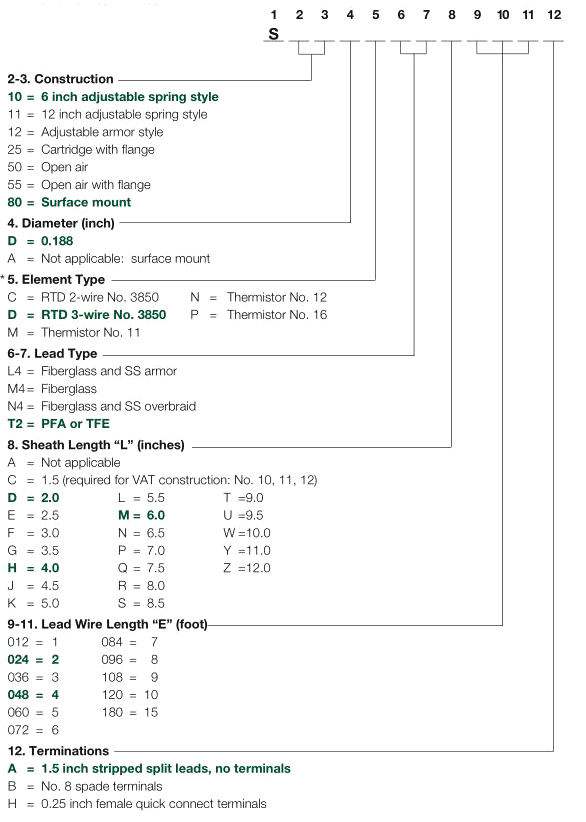

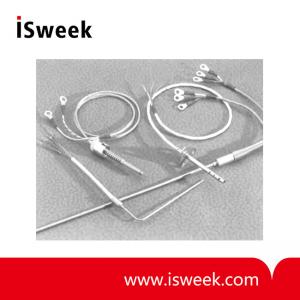

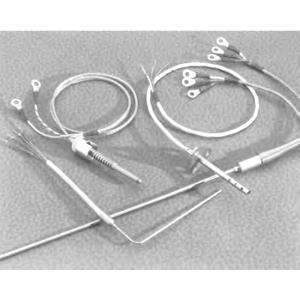

Specialty RTDs and Thermistors - S10DDN4C048A

Product Specification

Resistance Temperature Sensing

RTDs
Platinum resistance elements are specially designed to ensure precise and repeatable temperature versus resistance characteristics. The sensors are made with controlled purity platinum, have high purity ceramic components and constructed in a unique strain-free manner.

Specialty RTDs and Thermistors Performance Capabilities
? Ceramic elements are extremely precise and stable within the wide temperature range of -200 to 650°C (-328 to1200°F).

Specialty RTDs and Thermistors Features and Benefits
Patented, strain-free construction
? Provides dependable, accurate readings
? Allows elements from different lots to be substituted without recalibration
High signal-to-noise output
? Increases accuracy of data transmission
? Permits greater distances between sensor and measuring equipment
Temperature coefficient (alpha) carefully controlled while insulation resistance values exceed DIN-IEC-751 standards
? Ensures sensor sensitivity
? Minimizes self heating
? Allows precise measurement
? Repeatable
Highly controlled manufacturing process
? Ensures wide temperature range
? Stabilizes physical and chemical attributes
Metric diameters and fittings are available, please consult us.

Specialty RTDs and Thermistors Applications
? Air conditioning and refrigeration servicing
? Furnace servicing
? Stoves and grills
? Textile production
? Plastics processing
? Petrochemical processing servicing
? Furnace servicing
? Stoves and grills
? Textile production
? Plastics processing
? Petrochemical processing
? Micro electronics
? Air, gas and liquid temperature measurement
? Exhaust gas temperature measurement

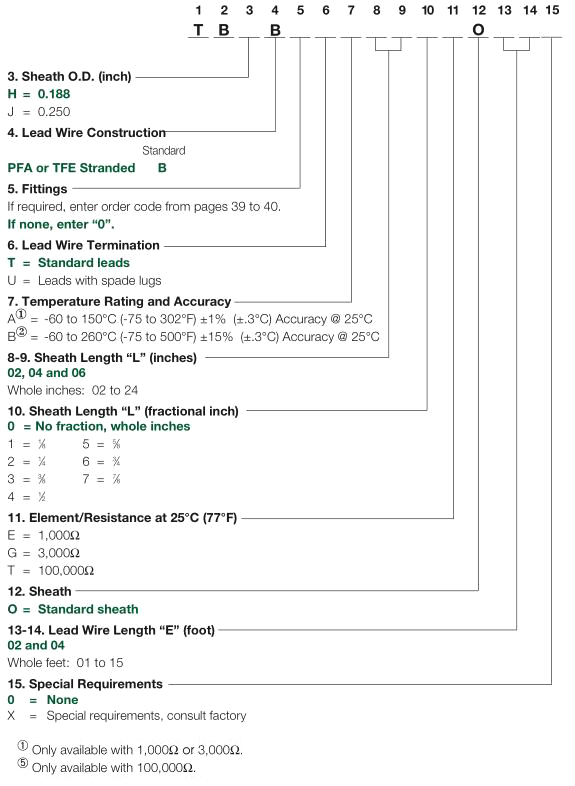

General Application RTD and Thermistors

Rapid Ship Sensors
Rapid Ship sensors come with 100? DIN 0.00385 curve RTD sensor, 24 AWG stranded three-wire leads, temperature rating -50 to 260°C (-58 to 500°F), standard split end lead termination and no mounting fittings.
