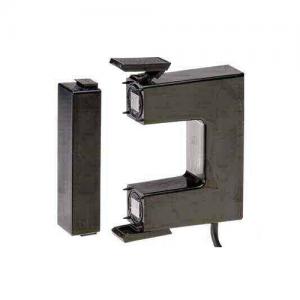

Split-core Current Transformer - 606 Series

Application: ANSI (Revenue Grade)
Split Core: true
Mount: wire
Frequency: 50-400Hz
Insulation Level: 0.6 kV, BIL 10 kV full wave
Continuous Thermal Current Rating Factor: 1.33 at 30°C amb., 1.00 at 55°C amb
Weight: 4.5 lbs

Model Number: 606 Series
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

The 606 Split Core Current Transformers are designed for assembly to an existing electrical installation without the need for dismantling the primary bus or cables.

These current transformers are a weather proof design suitable for use outdoor or in direct burial applications. The transformer cases are UV stabilized thermoplastic and filled with polyurethane resin. The mating surfaces of the transformer cores are protected by a rubber 'O' ring.

606 Series Split-core Current Transformer Features
Secondary Cable: Two No. 16 AWG, 6’ Long, Direct Burial, UV Res. UL Type TC

606 Series Split-core Current Transformer Specifications
Frequency: 50-400Hz
Insulation Level: 0.6 kV, BIL 10 kV full wave
Continuous Thermal Current Rating Factor: 1.33 at 30°C amb., 1.00 at 55°C amb
Weight: 4.5 lbs

606 Series Split-core Current Transformer Applications
For Energy Management Systems and Instrumentation Equipment

606 Series Split-core Current Transformer PART NUMBERS

Part Number	Current Ratio	Burden VA	ANSI Metering Class at 60Hz
606-201	200:5A	2.5	1%
606-251	250:5A	3.0	1%
606-301	300:5A	3.5	1%
606-351	350:5A	4.0	1%
606-402	400:5A	5.0	1%
606-501	500:5A	6.0	1%
606-601	600:5A	8.0	1%
606-751	750:5A	10.0	1%
606-801	800:5A	12.0	1%
606-102	1000:5A	15.0	1%
606-122	1200:5A	20.0	1%
