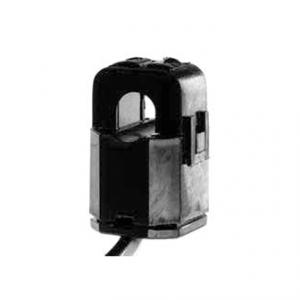

Split-core Current Transformer - CR3100 Series

Product Specification

The CR3100 Series Split Core Current Transformer is designed to provide a low cost method to monitoring electrical current. A unique hinge and locking snap allows attachment without interrupting the current-carrying wire. High secondary turn will develop signals up to 10.0 VAC across a burden resistor.

CR3100 Series Split-core Current Transformer Features
? Small size
? Low cost
? High secondary turns
? Secure locking hinge

CR3100 Series Split-core Current Transformer Specifications
? Maximum Continuous Primary Current: 75 AAC
? Secondary turns: 3000
? Wire leads: AWG #22
? Frequency: 50/60 Hz
? DC Resistance: 460 Ohms @ 20°C

CR3100 Series Split-core Current Transformer Applications
? Portable instruments
? Sub-metering
? Monitor motor loads

CR3100 Series Split-core Current Transformer PART NUMBERS
