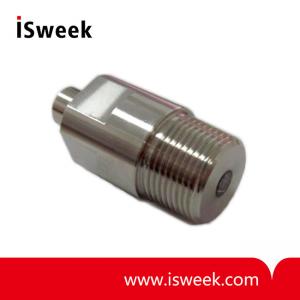

Temperature & UV Sensor Probe - GUVx-T1xGC-TLW10
- Water Environment (<10 bar)
- Single Supply Voltage, 0-5V Voltage Output
- AlGaInN-based UV Sensor Probe
- Supply Voltage: DC 9~24 V
- Supply Current: 3.3mA
- Detection Range:
GUVV-T11GC-TLW10: 230~395nm
GUVB-T12GC-TLW10: 220~320nm
GUVC-T11GC-TLW10: 220~280nm
- Model Number: GUVx-T1xGC-TLW10
- Data Sheet:
- Quantity:
- - +
Product Specification
GUVx-T1xGC-TLW10 Temperature & UV Sensor Probe Features
- Water Environment (<10 bar)
- Single Supply Voltage, 0-5V Voltage Output
GUVx-T1xGC-TLW10 Temperature & UV Sensor Probe Applications
- UV Power Measure
- UV Lamp Monitoring, Temperature Monitoring
GUVx-T1xGC-TLW10 Temperature & UV Sensor Probe Case dimensions
|
Thread/Length for Mounting |
Diameter (mm) |
Window (mm) |
Wrench Size (mm) |
Length (mm) |
Weight (g) |
Body (stainless steel) |
| PT3/4 " /16 mm | 30 |
7 |
26 | 62 |
200 |
316L (1.4404) |
GUVx-T1xGC-TLW10 Temperature & UV Sensor Probe Absolute Maximum Ratings
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Remark |
|
Storage Temperature |
Tst |
-40 |
|
90 |
°C |
|
|
Operating Temperature |
Top |
-30 |
|
85 |
°C |
|
GUVx-T1xGC-TLW10 Temperature & UV Sensor Probe Electro-Optical Characteristics (at 25°C)
Parameter
Symbol
Min.
Typ.
Max.
Unit
Remark
Supply Voltage
Vcc
9
24
V
DC
Supply Current
IQ
3.3
mA
Detection Range
GUVV-T11GC-TLW10
λ
230
395
nm
10% of Max
GUVB-T12GC-TLW10
λ
220
320
nm
10% of Max
GUVC-T11GC-TLW10
λ
220
280
nm
10% of Max
Output Voltage
Vout
0
5
V
Detection Power Range
P
0
100
mW/cm2
Detection Temperature Range
Ta
-40
125
°C
tolerance within ±2℃
Response Time
T
10
ms
* Maximum of detection power : 20 mW/cm2 (Option), 100 mW/cm2 (Standard), 1000 mW/cm2 (Option)
