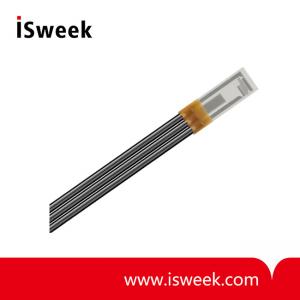

Thermal Mass Flow Sensor - FS5.0.1L.195
? Easy adaptation in various applications and housings
? Excellent reproducibility
? Simple signal processing
? Excellent long-term stability
? Simple calibration
- Model Number: FS5.0.1L.195
- Data Sheet:
- Quantity:
- - +
Product Specification
FS5.0.1L.195 Thermal Mass Flow Sensor Benefits & Characteristics：
? Easy adaptation in various applications and housings
? Excellent reproducibility
? Simple signal processing
? Excellent long-term stability
? Simple calibration
? Customer-specific sensor available upon request
? No moving mechanical parts
FS5.0.1L.195 Thermal Mass Flow Sensor Technical Data：
|
Dimensions (L x W x H / H2 in mm):* |
6.9 x 2.4 x 0.20 / 0.60 ? 6.0 (±0.1) mm , LH = 14 (±0.2) mm (complete dimensions in application note) |
|
Operating measuring range: |
0 m/s to 100 m/s |
|
Response sensitivity: |
0.01 m/s |
|
Accuracy: |
< 3 % of the measured value (dependent on the electronics and calibration) |
|
Response time t63: |
~160 ms (jump from 0 to 10000 sccm) |
|
Operating temperature range:* |
-20 °C to +150 °C |
|
Temperature sensitivity: |
< 0.1 %/K (dependent on the electronics) |
|
Connection:* |
3 pins, AWG 30/7, stranded wire, insulated with PTFE |
|
Heater:* |
RH (0 ℃) = 45 Ω ±1 % |
|
Reference element:* |
Rs (0 ℃) = 1200 Ω ±1 % |
|
Voltage range (nominal):* |
2 V to 5 V (at ? T = 30 K (0 m/s ≤ vgas ≤ 100 m/s) |
|
Maximum heater voltage:* |
3 V (at 0 m/s) |
|
Alternative construction:* |
Moulded plastic housing |
* Customer-specific alternatives available
1) For actual size, see dimensions
