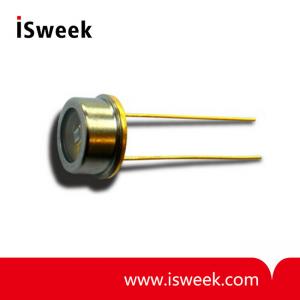

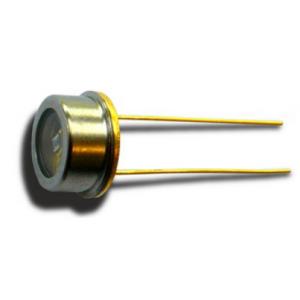

UV Photodiode - EOPD-265-0-0.5-CC
? UV range: 205 nm - 355 nm
? TO-52 package
? Chip size: 0.55 x 0.55 mm2
? Active area: 0.25 mm2
? Operating temperature range: -40~125 ℃
? Dark current: 25 fA
? Responsivity at λ=254 nm : 0.16 A/W
? Sensitivity range: 205~355 nm
- Model Number: EOPD-265-0-0.5-CC
- Data Sheet:
- Quantity:
- - +
Product Specification
| Radiation | Type? | Technology? | Case |
| ultraviolet? | UV-glass? | SiC? | TO-52 |
EOPD-265-0-0.5-CC UV Photodiode?Description:
Low cost SiC photodiode with high spectral sensitivity in the UV range (205 nm - 355 nm), mounted in?hermetically sealed TO-52 package with UV-glass window, RoHS and WEE compliant
EOPD-265-0-0.5-CC UV Photodiode?Applications:
? Universal measurements in the UV range
? Sterilization lamp monitoring
? Flame monitoring
EOPD-265-0-0.5-CC UV Photodiode?Maximum Ratings
Tamb = 25°C, unless otherwise specified
| Parameter | Symbol | Value | Unit |
| Chip?size | A | 0.55?x?0.55 | mm2 |
| Active?area | A | 0.25 | mm2 |
| Reverse?voltage | VR | 10 | V |
| Operating?temperature?range | Tamb | -40~125 | ℃ |
| Storage?temperature?range | Tstg | -40~125 | ℃ |
| Soldering?temperature,?3?s | Tsol? | 260 | ℃ |
EOPD-265-0-0.5-CC UV Photodiode?Optical and Electrical Characteristics
Tamb = 25°C, unless otherwise specified
| Parameter? | Test?conditions? | Symbol | Min | Typ | Max | Unit |
| Dark?current | VR=1V | ID |
|
25 |
|
fA |
| Peak?sensitivity?wavelength? | VR=0V | λp |
|
265 |
|
nm |
| Responsivity?at?λP | VR=0V | Sλ |
|
0.18 |
|
A/W |
| Responsivity?at?λ=254?nm? | VR=0V | Sλ |
|
0.16 |
|
A/W |
| Sensitivity?range?at?0.1?Smax? | VR=0V | λmin?,?λmax | 205 |
|
355 | nm |
| Junction?capacitance | VR=0V | CJ |
|
75 |
|
pF |
| Acceptance?angle | VR=0V | ? |
|
±40 |
|
deg |
