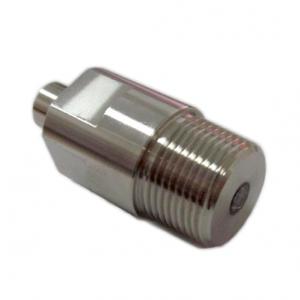

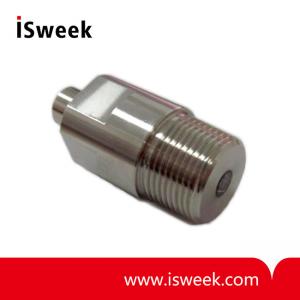

UV Sensor Probe - GVBL-T13GC-I8LW10
- Water Environment (<10 bar)
- Single Supply Voltage, 4-20mA Current Output
- AlGaInN-based UV Sensor
- Thread/Length for Mounting: PT3/4 " /16 mm
- Supply Voltage: DC 9~24 V
- Offset Current: 3.9~4.1mA, Typical: 4mA
- Detection Range: 330~445nm
- Detection Power Range: 0~100 ?/?
- Model Number: GVBL-T13GC-I8LW10
- Data Sheet:
- Quantity:
- - +
Product Specification
GVBL-T13GC-I8LW10 UV Sensor Probe Feature
- Water Environment (<10 bar)
- Single Supply Voltage, 4-20mA Current Output
GVBL-T13GC-I8LW10 UV Sensor Probe Application
- UV Power Measure
- UV Lamp Monitoring
GVBL-T13GC-I8LW10 UV Sensor Probe Case dimensions
|
Thread/Length for Mounting |
Diameter (mm) |
Window (mm) |
Wrench Size (mm) |
Length (mm) |
Weight (g) |
Body (stainless steel) |
| PT3/4 " /16 mm | 30 | 7 | 26 | 62 | 200 |
316-L ( 1.4404 ) |
GVBL-T13GC-I8LW10 UV Sensor Probe Absolute Maximum Ratings
|
Parameter |
Symbol |
Value |
Unit |
Remark |
||
|
Min. |
Typ. |
Max. | ||||
|
Storage Temperature |
Tst |
-40 |
|
90 |
°C |
|
|
Operating Temperature |
Top |
-30 |
|
85 |
°C |
|
GVBL-T13GC-I8LW10 UV Sensor Probe Electro-Optical Characteristics (at 25°C)
|
Parameter |
Symbol |
Value |
Unit |
Remark | ||
|
Min. |
Typ. |
Max. |
||||
|
Supply Voltage |
Vcc |
9 |
|
24 | V |
DC |
|
Offset Current |
Ioff |
3.9 | 4 | 4.1 | mA |
|
|
Detection Range |
λ |
330 |
|
445 | nm |
10% of Max |
|
Output Current |
Iout |
4 |
|
20 | mA |
|
|
Detection Power Range |
P | 0 |
|
100 | mW/cm2 |
|
|
Response Time |
T |
|
10 |
|
ms |
|
* Maximum of detection power : 20 mW/cm2 (Option), 100 mW/cm2 (Standard), 1000 mW/cm2 (Option)
