100 psi Absolute Pressure Sensor with Analogue Output - SPD100AA

? Supply Voltage:4.75~5.25 V
? Supply Current: 3 mA
? Pressure range: 0~100 psi
? Max output current: 2.2 mA
? Accuracy: ±1.8 %FS
? Response time(typ): 1 ms
? Operating temperature: -20 ~ 85°C
? Storage temperature: -40 ~ 125°C

  • Model Number: SPD100AA
  • Data Sheet: Date Sheet File
Quantity:
- +

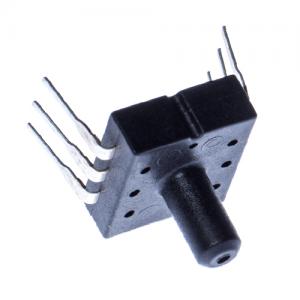

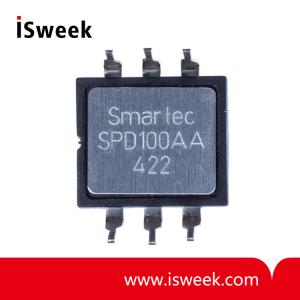

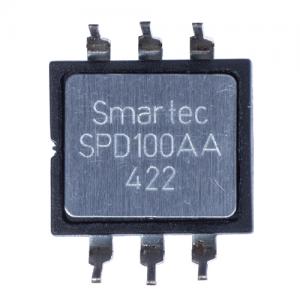

  • 100 psi Absolute Pressure Sensor with Analogue Output
  • 100 psi Absolute Pressure Sensor with Analogue Output
  • 100 psi Absolute Pressure Sensor with Analogue Output
Mouse over image to zoom
Share:

Product Specification

SPD100AA Absolute Pressure Sensor

This Smartec pressure sensor has an amplified analogue output. The sensor is compensated for offset, sensitivity, temperature drift and nonlinearity.

The sensor has a range of 100 psi absolute. Other ranges can be delivered on request. The output is ratiometric to the power supply voltage. At 5 Vcc the output span is 0.5 to 4.5 V.

SPD100AA Absolute Pressure Sensor Electrical Characteristics

Performance Characteristic at Vcc =5V excitation @ 25 °C

Parameter

 Min

 Typ

 Max

Units

Supply Voltage

4.75

5

5.25

V

Supply Current





3

mA

Pressure range (fs)

0



100

psi

Zero Output *)

0.428

0.5

0.572

Vdc

Span Output *80)



4.00



Vdc

Max output current





2.2

mA

Accuracy **)





±1.8

%FS

Response time



1

2

ms

Pressure overload





3x

Rated pressure

Operating temperature

-20



85

°C

Storage temperature

-40


125

°C


Wetted materials are: Pyrex Glass, Epoxy and silicon
*) Output is ratiometric to supply voltage
**) all errors included, temperature compensation over 50 ° °C
