100 psi Gauge Pressure Sensor with Bridge Output - SPD100GBsil

? Excitation voltage: 0~10V
? Excitation current: 1,5mA (typ)
? Pressure range: 0~100PSI
? Span: 70 - 130mV
? Offset: ±30mV
? Linearity: ±0,1%FS (typ)
? Operating temperature: -40~125°C
? Storage temperature: -40 ~ 125°C

  • Model Number: SPD100GBsil
  • Data Sheet: Date Sheet File
Quantity:
- +

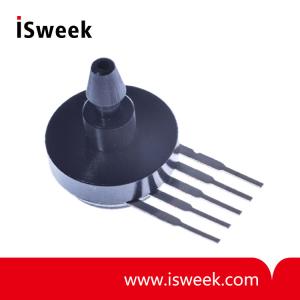

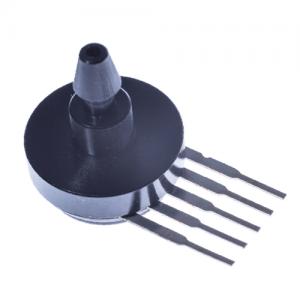

  • 100 psi Gauge Pressure Sensor with Bridge Output
  • 100 psi Gauge Pressure Sensor with Bridge Output
Mouse over image to zoom
Share:

Product Specification

SPD100GBsil Pressure Sensor

100 psi Gauge Type Pressure Sensor with Bridge Output
 This Smartec pressure sensor has a non-compensated bridge output. The sensor has a range of 100 PSI (FS) and the bridge output is ratiometric to the power supply voltage. Other pressure ranges (from 0.3 to 100 psi) on request.

SPD100GBsil Gauge Pressure Sensor Electrical Characteristics

Performance characteristic @ Vcc = 5 V and 25 °C

Parameter

Min

Typ

Max

Units

Excitation voltage

0

5

10

V

Excitation current



1,5

3

mA

Pressure range

0



100

PSI

Span

70

100

130

mV

Offset

-30

0

30

mV

Linearity

-0,3

±0,1

0,3

%FS

Bridge Impedance

4.0

5.0

6.0

K?

TC Span (0-50°C)

-27

-22

-17

%FS/100°C

TC Offset (0-50°C)

-7



7

%FS/100°C

Pressure overload





1,5 X



Operating temperature

-40



85

°C

Storage temperature

-40



125

°C


Wetted material containing PA and silicon
