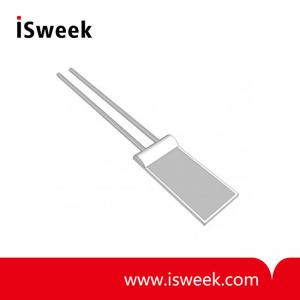

1000 °C Series Platinum sensor with wires - P0K2.420.10K.K.007.D.S

? ?Excellent long-term stability
? ?Vibration resistant
? ?3770 ppm/K characteristics curve
? ?Fast response time
? ?Low self-heating
? ?Simple interchangeability
? ?Small dimensions

Model Number: P0K2.420.10K.K.007.D.S
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

With the 3770 ppm/K characteristics curve, the IST AG 1000 °C Pt Temperature Sensor Series is specially developed for the automotive industry. The 1000 °C RTDs offer an excellent long-term stability and fast response time with low self-heating within a very wide temperature range of -70 °C to +1000 °C. The sensors are vibration resistant and offer simple interchangeability as well as small dimensions.

Furthermore, the IST AG Pt temperature sensors up to 1000 °C can be customized to fit application-specific requirements.

Benefits & Characteristics:

? Excellent long-term stability

? Vibration resistant

? 3770 ppm/K characteristics curve

? Fast response time

? Low self-heating

? Simple interchangeability

? Small dimensions

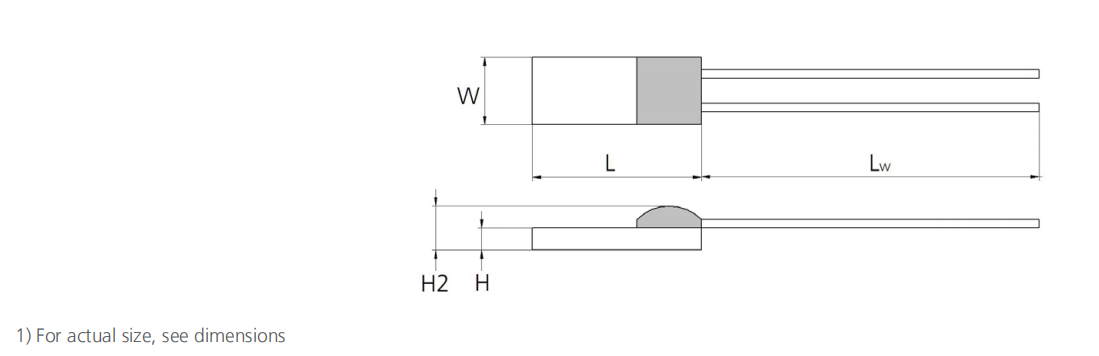

Illustration¹⁾：

Technical Data:

Dimensions(L x W x H / H2; L_W in mm)	3.85 x 1.9 x 0.45 /0.75; 7
Operating temperature range	-70℃ to +1000℃
Nominal resistance	200 Ω at 0℃
Characteristics curve	3770 ppm/K
Tolerance class (dependent on temperature range)	IST AG reference	-40℃ to +300℃	+300℃to +850℃
	K	±3 K	±1 %
Connection	Pt-wire, 7 x 0.25 (L x ? in mm) (solderable, weldable, crimpable)
Recommended applied current:¹⁾ 1) Self-heating must be considered	Max. 2.8 mA at 850℃
Other alternatives	Substrate thickness
