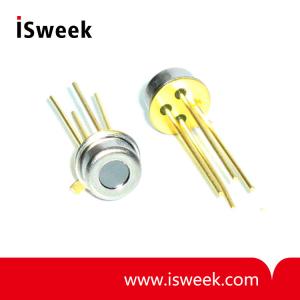

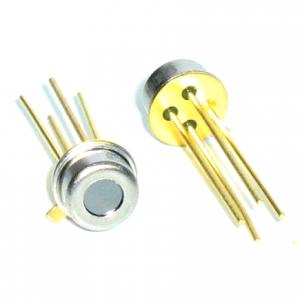

Infrared Thermopile Temperature Sensor - TS318-1B0814

? Thermopile IR-Sensor
? For Contactless Temperature Measurement
? Single Element
? Small Package for Ear Thermometer
? High Signal
? Flat Filter
? Accurate Reference Sensor

Model Number: TS318-1B0814
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

TS318-1B0814 Infrared Thermopile Temperature Sensor DESCRIPTION
TS318-1B0814 used for contactless temperature measurement in many applications; transfer the heat radiation emitted from the objects into a voltage output.

TS318-1B0814 Infrared Thermopile Temperature Sensor Features
? Thermopile IR-Sensor
? For Contactless Temperature Measurement
? Single Element
? Small Package for Ear Thermometer
? High Signal
? Flat Filter
? Accurate Reference Sensor

TS318-1B0814 Infrared Thermopile Temperature Sensor FEATURES
? High Signal
? Ni-RTD Reference Sensor
? Small TO-18 Package
? 8-14μm Band Pass Filter for measurement distances >0.5m

TS318-1B0814 Infrared Thermopile Temperature Sensor APPLICATIONS
? Pyrometers (general)
? Industrial Pyrometers

TS318-1B0814 Infrared Thermopile Temperature Sensor ABSOLUTE MAXIMUM RATINGS

Parameter	Symbol	Min	Typical	Max	Unit	Description
Storage Temperature	T_S	-20	+20	+85	°C	permanent
Storage Temperature	T_S	-20	+20	+100	°C	non permanent

TS318-1B0814 Infrared Thermopile Temperature Sensor PERFORMANCE SPECS

Parameter	Symbol	Value	Unit	Condition
Operating Ambient Temperature	T_Amb	-20 to +85	°C	permanent
Operating Ambient Temperature	T_Amb	-20 to +100	°C	non permanent
Package		TO-18
Absorber Area	A	0.8 × 0.8	mm²
Thermopile Resistance	R_TP	70 ± 30	kΩ	T_Amb = +25°C
Temperature Coefficient of Thermopile Resistance	TCR_TP	-0.06 ± 0.04	%/K	T_Amb = +25°C to +75°C
Voltage Response	V_TP	5.0 ± 1.3	mV	T_Amb = +25°C, TObj = +100°C, DC, totally filled field of view
Temperature Coefficient of Voltage Response	TCV_TP	-0.45 ± 0.08	%/K	T_Amb = +25°C to +75°C
Noise Equivalent Voltage	NEV	34	nV/Hz^?	T_Amb = +25°C
Rise Time	t₆₃	12 ± 5	ms
Ambient Temperature Sensor		Ni-RTD
Ambient Temperature Sensor Resistance	R_Ni-RTD	1000 ± 4	Ω	TAmb = 0°C
Temperature Coefficient of Ni-RTD	TC_Ni-RTD	6178 ±150	ppm/K	TAmb = 0°C to +100°C
