5 psi Gauge Pressure Sensor with Analogue Output - SPD005GAsmd

? Supply Voltage: 4.75~5.5V
? Supply Current: Max. 3mA
? Pressure range: 0~5psi
? Accuracy: ±1.8%FS
? Operating tem?perature: -20~85°C
? Storage temperature: -40~125°C

  • Model Number: SPD005GAsmd
  • Data Sheet: Date Sheet File
Quantity:
- +

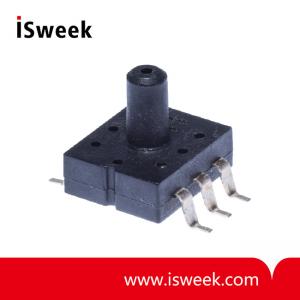

  • 5 psi Gauge Pressure Sensor with Analogue Output

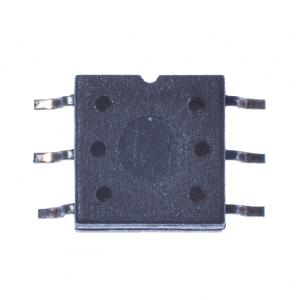

  • 5 psi Gauge Pressure Sensor with Analogue Output

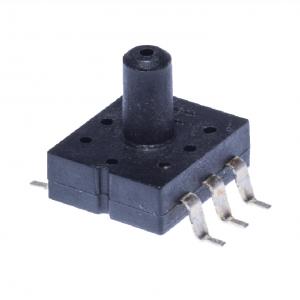

  • 5 psi Gauge Pressure Sensor with Analogue Output
Mouse over image to zoom
Share:

Product Specification

SPD005GAsmd 5 psi Gauge Pressure Sensor with Analogue Output Description
This pressure sensor has an amplified analogue output. The sensor is compensated for offset, sensitivity, temperature drift and nonlinearity.

The sensor is available in the range from 5 to 100 psi. Other ranges on request. Available in Gauge and Absolute type. The output is ratiometric to the power supply voltage. @ 5 V power voltage the output span is 0.5 to 4.5 V. The SPD analogue series can be considered as an “analogue” successor of the SPD series.

SPD005GAsmd 5 psi Gauge Pressure Sensor with Analogue Output Electrical Characteristics
Performance Characteristic at Vcc =5V excitation @ 25°C.

Parameter
 Min
 Typ
 Max
 Units
Supply Voltage
 4.75
 5
 5.5
 V
Supply Current

3 mA
Pressure range (fs)
 0
5 psi
Zero Output *)
 0.428
 0.5 0.572
 Vdc
Span Output *)
4.00
Vdc
Max output current

1 mA
Accuracy **)

±1.8
 %FS
Response time
1 2 Ms
Pressure overload

3x
 Rating
Operating temperature
 -20
85 °C
Storage temperature
 -40
125 °C

Wetted materials are: Pyrex Glass, Epoxy and silicon
*) Output is ratiometric to supply voltage
**) all errors included, temperature compensation over 50°C
