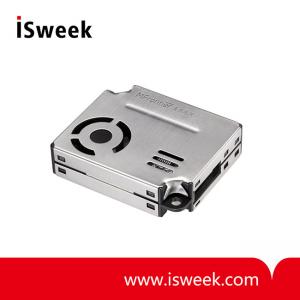

Air Laser Particulate Matter Sensor - MPM12-BG
MPM12 series laser dust sensor adopts laser scattering principle, with stable light source, constant light intensity, fast response, high detection accuracy and long service life.
- Model Number: MPM12-BG
- Data Sheet:
- Quantity:
- - +
Product Specification
MPM12 series laser dust sensor adopts laser scattering principle, with stable light source, constant light intensity, fast response, high detection accuracy and long service life.

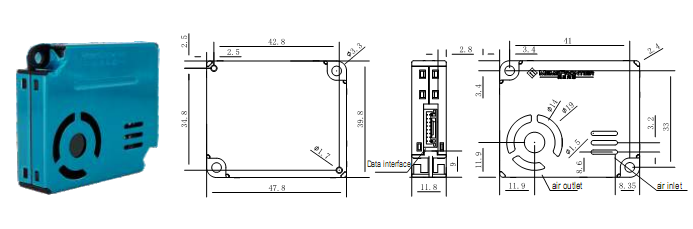

Product appearance and size:
Product parameters:
|
parameters |
index |
|
Types of particle detection |
PM1.0, PM2.5, PM10 |
|
Particle detection diameter range |
0.3-10μm |
|
Particulate matter concentration range (PM2.5 standard value) |
0~1000μg/m3 |
|
Particle Mass Concentration Resolution |
1μg/m3 |
|
Consistency of particulate matter concentration (PM2.5 standard value) *Note |
±10%(@100~500μg/m3 ) ±10μg/m3 (@ 0~100μg/m3 ) |
|
single response time |
≤1 s |
|
Comprehensive response time |
≤10 s |
|
DC supply voltage |
5.0V |
|
Working current |
≤85mA |
|
Stand-by current |
≤45μA |
|
Data interface level |
L < 0.8 (@3.3); H > 2.7(@3.3) |
|
Storage temperature |
-30℃～+70℃ |
|
Range of working temperature |
-10℃~+60℃ |
|
Working humidity range |
0~99%RH(no condensation) |
|
Mean time between failures |
≥5 Years |
|
Dimensions |
47.8*39.8*11.8mm(L×W×H) |
Note: The particle concentration consistency data is data 2 in the communication protocol (test conditions: 25±2℃, 50±10%RH).
