Analog Output Linear Position Sensor - MB Series
Measuring range: 50-2500mm?
Output: 0~10VDC
Compact structure
Strong anti-interferenceability
Sealedstain-resistance
Oil-resistance
Waterproof (vapor)
- Model Number: MB Series
- Quantity:
- - +
Product Specification
Features:
MB series products are customized products for the American Parker and the size of the electronic head is only 23 mm. They adopt the sealed type design and are suitable for measuring occasions with strict demands for the installation space of electronic head. The features: compact structure, strong anti-interferenceability, sealedstain-resistance, oil-resistance, waterproof (vapor), etc.
Analog outputs includee: dc current 4 ~ 20 mA (forward, reverse) and dc voltage 0 ~ 10 V (forward, reverse); SSI outputs includee: 24, 25, 26 bit binary or gray code; They can be widely used in engineering machinery, mechanical power and some other occassions.
Products Data:
| |
Analog output |
|
| Parameters | Specifications | |
| Measuring range | 50-2500mm | |
| Output |
0~10VDC |
|
| Resolution | 16bit D/A | |
| Linearity | < ±0.04%F.S. | |
| Repertability | < ±0.005%F.S. | |
| Frequency response | Range related | |
| Input voltage | 24VDC (-15/+20%) | |
| Operating temperature | -40℃ ~ +85℃ | |
| Protection |
IP67 |
|
| Thread | Tight set screws,DIN 913 | |

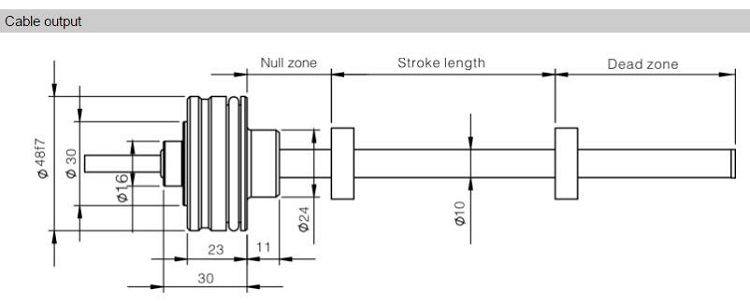

Outline dimensions:
Electrical connection:
|
Analog output |
Pin |
Cable |
Function |
|
Only provides Straight out of the cable products |
1 |
Grey |
Analog outputs |
|
2 |
Pink |
DC ground |
|
|
3 |
Yellow |
(+)COM.(reserved) |
|
|
4 |
Green |
(-)COM.(reserved) |
|
|
5 |
Brown |
+24VDC(-15%/+20%) | |
|
6 |
White |
DC GND(0 Vdc) |
