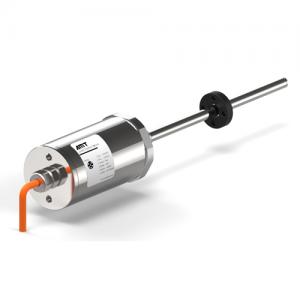

Waterproof Model Position Sensors - WH Series
anti-interference
good environmental tolerability (voltage 35 MPa long-term / 70 MPa peak, heat resistance -40 °---+ 85 °)
never wear(non-contact measuring ability)
high resolution (0.5 um)
high precision (repeatability:< ±0.001% full stroke)
replacement by the convenience
intelligent diagnosisand and other special advantages.
- Model Number: WH Series
- Quantity:
- - +
Product Specification
Features：
WH series waterproof model position sensors, their protection capacity reach IP69K. The features: anti-interference, good environmental tolerability (voltage 35 MPa long-term / 70 MPa peak, heat resistance -40 °---+ 85 °), never wear(non-contact measuring ability), high resolution (0.5 um), high precision (repeatability:< ±0.001% full stroke), replacement by the convenience, intelligent diagnosisand and other special advantages.
It can be widely used in metallurgy (continuous casting and rolling), petrochemical, port machinery, hydraulic pressure tester, water conservancy and electricity, etc.
Products Data:
|
|
Analog output |
SSI output |
|
Parameters |
Specifications |
Specifications |
|
Stroke lengths |
25-7600mm |
25-7600mm |
|
Out put |
4~20mADC; 0~10VDC |
24,25,26bit Binary or gray yards |
|
Resolution |
16bit D/A |
0.5/ 1/ 2/ 5/ 10/ 20/ 50/ 100um |
|
Linearity |
< ±0.01%F.S.( Minimum ±50μm) |
< ±0.01%F.S.( Minimum ±40μm) |
|
Repertability |
< ±0.001%F.S.( Minimum ±1μm) |
< ±0.001%F.S.( Minimum ±1 reading ) |
|
Frequency response |
Range related |
Range related |
|
Input voltage |
24VDC (-15/+20%) |
|
|
Operating temperature |
- 40℃ ~ +85℃ |
|
|
Protection |
IP69K |
|
|
Thread |
M18×1.5 or 3/4"-16 UNF-3A |
|
Outline dimensions:
Electrical connection:
