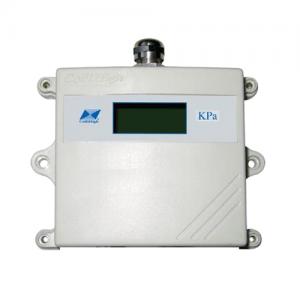

Atmospheric Pressure Transmitter - JQYB

? Measuring range: 0～110kPa
? Power supply: DC 24V (12V～32V)
? Accuracy: ± 0.25％F.S
? Medium temperature: -10°C～50°C
? Environment temperature: -10°C～50°C
? Response time: ≤ 50ms
? Hysteresis and repeatability: ± 0.2％F.S
? Nonlinear: ± 0.2％F.S

  • Model Number: JQYB
Quantity:
- +
  • Atmospheric Pressure Transmitter
  • Atmospheric Pressure Transmitter
Mouse over image to zoom
Share:

Product Specification

JQYB Atmospheric Pressure Transmitter Characteristic
? Intelligent digital circuit, atmospheric pressure automatically correct temperature drift with the temperature change
? Three prevent design: prevent surge voltage, polarity reverse and electromagnetic interference
? LCD more information liquid crystal display
? A variety ways of output like voltage, current,network and so on

JQYB Atmospheric Pressure Transmitter Parameters

Measuring range 0～110kPa
Power supply DC 24V (12V～32V)
Load capacity current mode ≤500Ω
voltage mode ≥3kΩ
Accuracy ± 0.25％F.S (when the temperature is 23±2°C and a standard atmospheric pressure); ± 0.5％F.S
Medium temperature -10°C～50°C
Environment temperature -10°C～50°C
Response time ≤ 50ms
Hysteresis and repeatability   ± 0.2％F.S
Long-term stability ± 0.1％F.S/y
Nonlinear ± 0.2％F.S
Thermal zero drift ± 0.02％F.S/°C
Max working pressure two times of range
Electrical connection terminal
Measuring medium air
