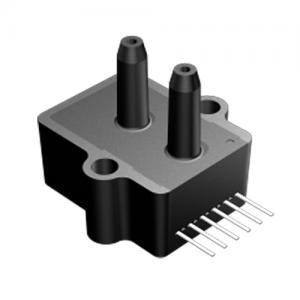

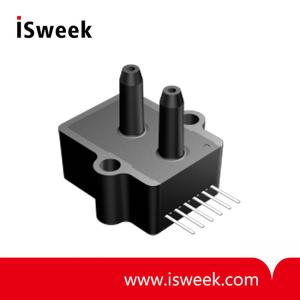

AXCA Series Amplified Middle Pressure Sensors - 1 PSI-D-4V/1 PSI-G-4V

? Supply Voltage: +4.5 to +5.5 Vdc?
? Common-mode pressure?: ?-10 to +10 psig
? Lead Temperature, max (soldering 2-4 sec.): 250°C
? Compensated Temperature: 5 to 50 °C
? Operating Temperature: -25 to 85 °C
? Storage Temperature: -40 to 125 °C
? Humidity Limits: 0 to 95% RH (non condensing)

Model Number: 1 PSI-D-4V/1 PSI-G-4V
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

AXCA Series Amplified Middle Pressure Sensors General Description
The Amplified line of middle pressure sensors is based upon a proprietary package technology to reduce errors. This model provides a ratiometric 4-volt output with superior output characteristics. The sensor housing has been designed specifically to reduce package induced parasitic stress and strain. In addition the sensor utilizes a silicon, micromachined, stress concentration enhanced structure to provide a very linear output to measured pressure.

These calibrated and temperature compensated sensors give an accurate and stable output over a wide temperature range. Each sensor is internally compensated using an ASIC compensation technique. This series is intended for use with non-corrosive, non-ionic working fluids such as air, dry gases and the like.

The output of the device is ratiometric to the supply voltage over a supply voltage range of 4.5 to 5.5 volts.

AXCA Series Amplified Middle Pressure Sensors Features
? 0 to ±0.3 to 0 to 150 psi Pressure Ranges
? Ratiometric 4V Output
? Temperature Compensated
? Calibrated Zero and Span

AXCA Series Amplified Middle Pressure Sensors Applications
? Medical Instrumentation
? Environmental Instrumentation
? HVAC Instrumentation

AXCA Series Amplified Middle Pressure Sensors

Pressure Sensor Ratings		Environmental Specifications
Supply Voltage, Vs	+4.5 to +5.5 Vdc	Compensated Temperature	5 to 50 °C
Common-mode pressure	-10 to +10 psig	Operating Temperature	-25 to 85 °C
Lead Temperature, max (soldering 2-4 sec.)	250°C	Storage Temperature	-40 to 125 °C
		Humidity Limits	0 to 95% RH (non condensing)

AXCA Series Amplified Middle Pressure Sensors Standard Pressure Ranges

Part Number	Operating Pressure	Nominal Span	Proof Pressure	Burst Pressure
0.3 PSI-D-4V	±0.3 PSI	±2 V	5 PSI	10 PSI
0.3 PSI-G-4V	0 - 0.3 PSI	4 V	5 PSI	10 PSI
1 PSI-D-4V	±1 PSI	±2 V	5 PSI	10 PSI
1 PSI-G-4V	0 - 1 PSI	4 V	5 PSI	10 PSI
2.5 PSI-D-4V	±2.5 PSI	±2 V	10 PSI	20 PSI
2.5 PSI-G-4V	0 - 2.5 PSI	4 V	10 PSI	20 PSI
5 PSI-D-4V	±5 PSI	±2 V	15 PSI	30 PSI
5 PSI-G-4V	0 - 5 PSI	4 V	15 PSI	30 PSI
15 PSI-A-4V	0 - 15 PSIA	4 V	45 PSI	60 PSI
15 PSI-D-4V	±15 PSI	±2 V	45 PSI	60 PSI
15 PSI-G-4V	0 - 15 PSI	4 V	45 PSI	60 PSI
30 PSI-A-4V	0 - 30 PSIA	4 V	60 PSI	60 PSI
30 PSI-D-4V	±30 PSI	±2 V	60 PSI	60 PSI
30 PSI-G-4V	0 - 30 PSI	4 V	60 PSI	100 PSI
100 PSI-A-4V	0 - 100 PSIA	4 V	150 PSI	150 PSI
100 PSI-D-4V	±100 PSI	±2 V	150 PSI	150 PSI
100 PSI-G-4V	0 - 100 PSI	4 V	150 PSI	150 PSI
150 PSI-D-4V	±150 PSI	±2 V	200 PSI	200 PSI
150 PSI-G-4V	0 - 150 PSI	4 V	200 PSI	200 PSI
BARO-A-4V	600 - 1100 mbarA	4 V	45 PSI	60 PSI
