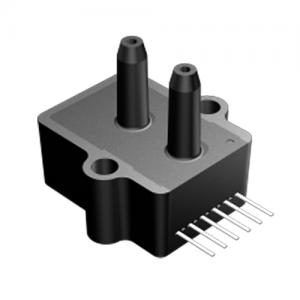

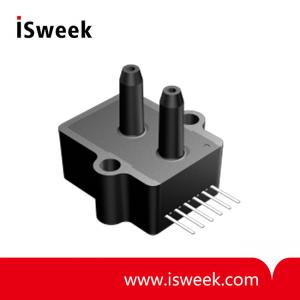

AXCA Series Military Grade Amplified Middle Pressure Sensors - 5 PSI-D-4V-MIL

? 0.3 psi to 15 psi Pressure Sensors
? Supply Supply Voltage: +4.5 to +5.5 Vdc
? Common-mode pressure: -10 to +10 psig
? Lead Temperature, max (soldering 2-4 sec.): 250°C
? Compensated Temperature: -40 to 125 °C
? Operating Temperature: -40 to 125 °C
? Storage Temperature: -40 to 125 °C
? Humidity Limits: 0 to 95% RH (non condensing)

Model Number: 5 PSI-D-4V-MIL
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Amplified Middle Pressure Sensors
0.3 psi to 15 psi Pressure Sensors, Military Temperature Grade

AXCA Series Military Grade Amplified Middle Pressure Sensors General Description
The Amplified line of middle pressure sensors is based upon a proprietary package technology to reduce errors. This model provides a ratiometric 4-volt output with superior output characteristics. The sensor housing has been designed specifically to reduce package induced parasitic stress and strain. In addition the sensor utilizes a silicon, micromachined, stress concentration enhanced structure to provide a very linear output to measured pressure.

These calibrated and temperature compensated sensors give an accurate and stable output over a wide temperature range. Each sensor is internally compensated using an ASIC compensation technique. This series is intended for use with non-corrosive, non-ionic working fluids such as air, dry gases and the like.

The output of the device is ratiometric to the supply voltage over a supply voltage range of 4.5 to 5.5 volts.

AXCA Series Military Grade Amplified Middle Pressure Sensors Features
? 0 to 0.3 psi to 0 to 15 psi Pressure Ranges
? Ratiometric 4V Output
? Temperature Compensated (-40C to 125C)
? Calibrated Zero and Span

AXCA Series Military Grade Amplified Middle Pressure Sensors Applications
? Medical Instrumentation
? Environmental Controls
? HVAC

AXCA Series Military Grade Amplified Middle Pressure Sensors

Pressure Sensor Ratings		Environmental Specifications
Supply Supply Voltage VS	+4.5 to +5.5 Vdc	Compensated Temperature	-40 to 125 °C
Common-mode pressure	-10 to +10 psig	Operating Temperature	-40 to 125 °C
Lead Temperature, max (soldering 2-4 sec.)	250°C	Storage Temperature	-40 to 125 °C
		Humidity Limits	0 to 95% RH (non condensing)

AXCA Series Military Grade Amplified Middle Pressure Sensors Standard Pressure Ranges

Part Number	Operating Pressure	Nominal Span	Proof Pressure	Burst Pressure
0.3 PSI-D-4V-MIL	±0.3 PSI	4 V	5 PSI	10 PSI
0.3 PSI-G-4V-MIL	0 - 0.3 PSI	4 V	5 PSI	10 PSI
1 PSI-D-4V-MIL	±1 PSI	4 V	5 PSI	10 PSI
1 PSI-G-4V-MIL	0 - 1 PSI	4 V	5 PSI	10 PSI
5 PSI-D-4V-MIL	±5 PSI	4 V	15 PSI	30 PSI
5 PSI-TG-4V-MIL	0 - 5 PSI	4 V	15 PSI	30 PSI
15 PSI-A-4V-MIL	0 - 15 PSIA	4 V	45 PSI	60 PSI
15 PSI-D-4V-MIL	±15PSI	4 V	45 PSI	60 PSI
15 PSI-G-4V-MIL	0 - 15 PSIG	4 V	45 PSI	60 PSI
