BasicLine BL 560 Repeater Power Supply - BL 560

1. General Information

The warning symbol on the device (exclamation point in triangle) mans: Observe instructions!

Warning!

Protection against electric shock

For applications with high working voltages, take measures to prevent accidental contact and make sure that there is sufficient distance or insulation between adjacent devices.

Caution

Only trained and qualified personnel should install the BasicLine BL 560 repeater power supply.

Do not connect the devices to power supply before they are professionally installed. Be sure to observe the national codes and regulations for installation and selection of cables and lines.

You must install a two-pole circuit breaker between device and mains supply (next to the device). It must be easily accessible and clearly identifiable by the operator. Mains supply must be protected by a fuse ≤ 20 A.

2. Intended Use

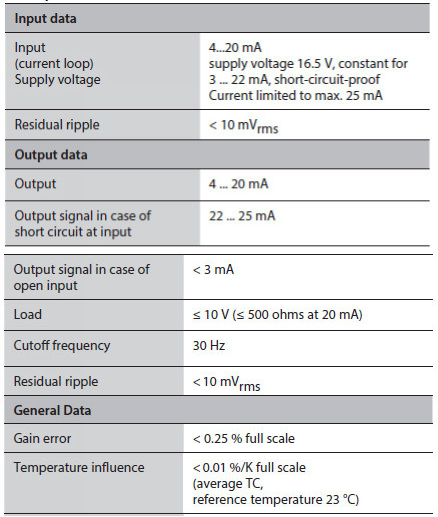

The BL 560 repeater power supply is used for galvanically isolated supply of a 2-wire transmitter and transmission of the measured signal.

This signal of the 2-wire transmitter is transmitted galvanically isolated to the output of the BL 560 as 4-20 mA standard signal.

Warning against misuse

Do not operate the device outside the conditions specified by the manufacturer, as this might result in hazards to operators or malfunction of the equipment.
