Carbon Dioxide (CO2) Gas Monitor and Alarm - G01-CO2-B3 Series

? Gas detected: Carbon Dioxide (CO2)
? Accuracy@25°C(77°F): ±60ppm + 3% of reading
? Stability: <2% of FS over life of sensor
? Response Time: <2 minutes for 90% step change
? CO2 measuring range: 0~5,000ppm
? CO2 Display resolution: 1ppm
? Temperature measuring range: -20~60°C(-4~140°F)
? Humidity measuring range: 0~99%RH

Model Number: G01-CO2-B3 Series
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

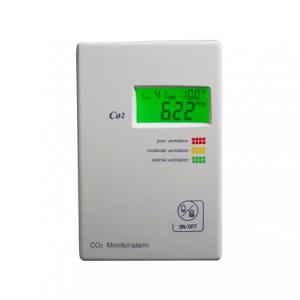

Carbon Dioxide Monitor and Alarm
Model:G01-CO2-B3Series
CO2+Temperature and Humidity Detection and Monitoring

? Real time carbon dioxide detection and monitoring
? Temperature and humidity detection and display
? Three-color backlit LCD and buzzer alarm
? Provide 1xon/off output to control a ventilator
? Wall mounting and desktop placed
? High quality with the perfect appearance, CE-approval

G01-CO2-B3 Series Carbon Dioxide Monitor and Alarm Features
? Design for real time monitoring room carbon dioxide level
? NDIR infrared CO2 sensor inside with special Self Calibration System. It makes the CO2 measurement more accurate and more reliable in use.
? More than 10 years lifetime of CO2 sensor
? Temperature and humidity monitoring
? Three-color (green/yellow/red) LCD backlit indicating ventilation optimal/moderate/poor based on the CO2 measurement
? Two alarm ways: buzzer alarm and backlight Colours switch
? Provide optional 1xrelay output to control a ventilator
? Easy touch button for operation
? High quality with the perfect appearance, best choice for home and office
? 220VAC or 24VAC/VDC power selectable; power adaptor available; desktop and wall mounting type available
? EU standard and CE-approval

G01-CO2-B3 Series Carbon Dioxide Monitor and Alarm Application
New G01-CO2 monitor/alarm is used to monitoring room CO 2 level, as well as room temperature and humidity. It provides one on/off output to control a ventilator with four CO2 levels presetting. Especially it provides both buzzer alarm and three colors backlit switching alarm.
? Hotel, exhibition hall, hospital, shop, restaurant, air port, train station, theater and other public places
? House, villa, office, meeting room, classroom and other rooms
? All ventilation systems

G01-CO2-B3 Series Carbon Dioxide Monitor and Alarm Specifications

Gas detected	Carbon Dioxide (CO2)
Sensing element	Non-Dispersive Infrared Detector (NDIR)
Accuracy@25°C(77°F)	±60ppm + 3% of reading
Stability	<2% of FS over life of sensor (15 yr typical)
Calibration interval	ABC Logic Self Calibration Algorithm
NDIR life	15 years
Response Time	<2 minutes for 90% step change
Signal update	Every 2 seconds
Warm up time	<3 minutes (operation)
CO2 measuring range	0~5,000ppm
CO2 Display resolution	1ppm
Power supply	100~240VAC or 10~24VAC/VDC selectable in the order
Consumption	3.5 W max. ; 2.5 W avg.
Temperature sensor	NTC 5K
Humidity sensor	HS series capacitive sensor
Temperature measuring range	-20~60°C(-4~140°F)
Humidity measuring range	0~99%RH
Relay output (optional)	One relay output with rated switching current: 3A, resistance load
Operation conditions	0~50°C(32~122°F); 0~95%RH, non condensing
Storage conditions	-10~60°C(14~140°F) 5~95%RH non condensing
Weight	200g
Dimensions	130mm(H) x 85mm(W) x 36.5mm(D)
Installation	Desktop and wall mounting(65mm×65mm or 2" x 4" wire box)
Housing and IP class	PC/ABS fireproof plastic material, protection class: IP30
Standard	CE-Approval

G01-CO2-B3 Series Carbon Dioxide Monitor and Alarm Models Guide

Model	Name	Description	Power Supply	Type
G01-CO2-B320D	CO2, temperature and humidity monitor/alarm	Three-color backlit LCD, buzzer alarm	100~240VAC	Wall mounting
G01-CO2-B320D-NR	CO2 and temperature monitor/alarm (no RH option)	Three-color backlit LCD, buzzer alarm	100~240VAC	Wall mounting
G01-CO2-B331C	CO2, temperature and humidity monitor/alarm	Three-color backlit LCD, buzzer alarm	18~24VAC/VDC with a DC socket.	Wall mounting
G01-CO2-B331C-NR	CO2 and temperature monitor/alarm (no RH option)	Three-color backlit LCD, buzzer alarm	18~24VAC/VDC with a DC socket.	Wall mounting
G01-CO2-B340C	CO2, temperature and humidity monitor/controller	Three-color backlit LCD, buzzer alarm; 1 on/off output; touch-key for operation	18~24VAC/VDC	Wall mounting
G01-CO2-B340C-NR	CO2 and temperature monitor/controller (no RH option)	Three-color backlit LCD, buzzer alarm; 1 on/off output; touch-key for operation	18~24VAC/VDC	Wall mounting
G01-CO2-B340D	CO2, temperature and humidity monitor/controller	Three-color backlit LCD, buzzer alarm; 1 on/off output; touch-key for operation	100~240VAC	Wall mounting
G01-CO2-B340D-NR	CO2 and temperature monitor/controller (no RH option)	Three-color backlit LCD, buzzer alarm; 1 on/off output; touch-key for operation	100~240VAC	Wall mounting
Optional Accessories
870	Power adaptor	Input:100~240VAC, Output: DC 24V/ 240mA	Just for G01-CO2-B331C or G01-CO2-B331C-NR
921	Wall mounting plate	Accessory for wall mounting

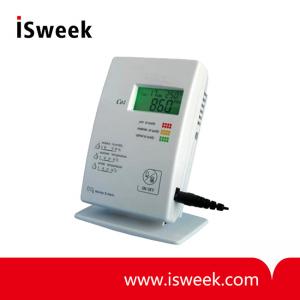

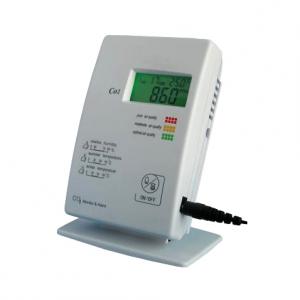

921+922	Desktop bracket	As be the desktop type	Just for G01-CO2-B331C or G01-CO2-B331C-NR
