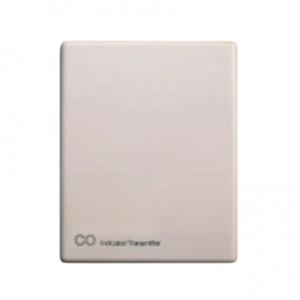

Carbon Monoxide (CO) Detector and Transmitter - F2000TSM-CO-C101

? Gas detected: Carbon monoxide
? CO Measuring Range: 0~100ppm(default); 0~200ppm/0~500ppm selectable
? Response Time: Within 60 seconds
? Accuracy: <±1ppm
? Stability: ± 5%
? Power Supply: 24VAC/VDC
? Consumption: 1.5 W

Model Number: F2000TSM-CO-C101
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Carbon Monoxide Detector And Transmitter
Model#: F2000TSM-CO-C101

? Real time detect and transmit ambiance carbon monoxide level
? Up to more than five years lifetime
? 1x analog output for linear measurement
? Modbus RS485 interface
? The highest performance with the lowest price

F2000TSM-CO-C101 Carbon Monoxide Detector and Transmitter Description

F2000TSM-CO-C101 is specifically designed to detect and transmit carbon monoxide level in the enclosed or semi-enclosed car parks and to regulate the environment according to the measurement of carbon monoxide. It is designed for easy installation and minimum maintenance during operation.

F2000TSM-CO-C101 Carbon Monoxide Detector and Transmitter Features
? Wall mounting, real time detect CO level with measuring range of 0~100ppm/ 0~200pm/ 0~500ppm.
? Electrochemical sensor which offer several advantages over traditional electrochemicalsensors.
? With a long life, good long term stability, and high accuracy, the CO sensor is environmentally friendly without risk of electrolyte leakage.
? With simple calibration
? The special design of easy sensor's replacement makes customers replace sensor easily by themselves
? Full time CO level detection, even the slightest leak can be detected
? One analog output of the measurement of carbon monoxide concentration with 0~10V/4~20mA selectable
? Special built-in Self-Zero Correction algorithm.
? Modbus RS-485 communication with 15KV antistatic protection, also can be calibrated carbon monoxide measurement via the interface

F2000TSM-CO-C101 Carbon Monoxide Detector and Transmitter Application
? Residential and commercial CO detectors and transmitters
? Ventilation control for indoor parking garages
? Recreational vehicle CO detectors
? Kitchen rooms and restaurants
? Freezing machine rooms and other places where air quality is easy to worsen

F2000TSM-CO-C101 Carbon Monoxide Detector and Transmitter Specifications

CO Measurement
Gas detected	Carbon monoxide
Sensing element	Battery operable electrochemical sensor
Gas sample mode	Diffusion
Warm up time	1hour (first time)
Response Time	Within 60 seconds
Signal Update	1s
CO Measuring Range	0~100ppm(default) 0~200ppm/0~500ppm selectable
Accuracy	<±1ppm (at 20±5°C/ 50±20%RH)
Stability	± 5% (over 900 days)
Electrical
Power Supply	24VAC/VDC
Consumption	1.5 W
Wiring connections	5 terminal blocks (max.)
Outputs
Linear analog output	1x0~10VDC/4~20Ma selectable in order
D/A resolution	16 bit
D/A conversion accuracy	0.1ppm
Modbus RS485 Communication interface	Modbus RS485 interface 9600/14400/19200(default), 28800 bps, 38400 bps (programmable selection), 15KV antistatic protection
General Performance
Operation temperature	0~60°C (32~140°F)
Operation humidity	5~99%RH, non condensing
Storage conditions	0~50°C (32~122°F)
Net Weight	190g
Dimensions	100mm x 80mm x 28mm
Installation standard	65mm x 65mm or 2" x 4" junking box
Housing and IP class	PC/ABS fireproof plastic material, protection class: IP30
Compliance	EMC Directive 89/336/EEC

Carbon Monoxide Detector and Transmitter Models

ITEM	MODEL	DESCRIPTION
Carbon Monoxide Transmitter	F2000TSM-CO-C001	Carbon monoxide transmitter with Modbus RS485 communication interface
Carbon Monoxide Transmitter	F2000TSM-CO-C101-V/A	Carbon monoxide transmitter with one 0~10VDC/4~20mA output. Modbus RS485 communication interface
