Digital AC Clamp Meter - M266/M266C/M266F

Product Specification

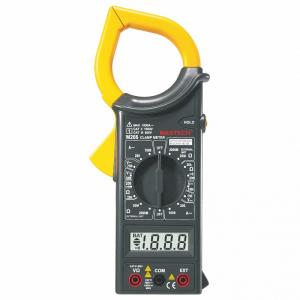

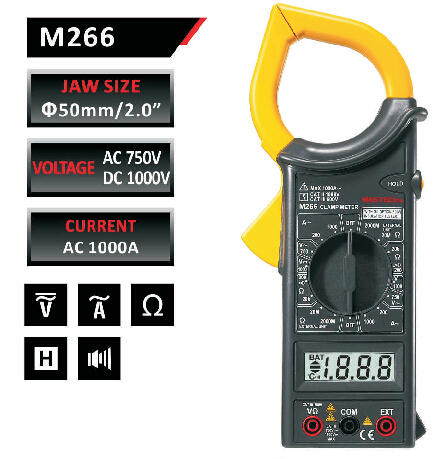

M266 - Digital AC Clamp Meter

The meter is completely portable, LCD, 3 1/2 digit clamp meter with insulation test function (with option 500V insulation tester unit). It has been designed rugged structure, good feeling held in operator's hand and convenient use.

M266 Digital AC Clamp Meter Features
? Display 2000 counts
? Jaw Opening Ф50mm/2.0"
? Continuity Buzzer <100?
? Data Hold
? Low Battery Display

M266 Digital AC Clamp Meter General Specifications
? Power Supply: 1 x 9V 6F22 Battery
? Product Size: 235mm x 96mm x 46mm / 9.25" x 3.8" x 1.8"
? Product Weight: 268g/0.59lb
? Certification: CE / ETL / RoHS
? Safety Rating: CAT II 1000V/ CAT III 600V

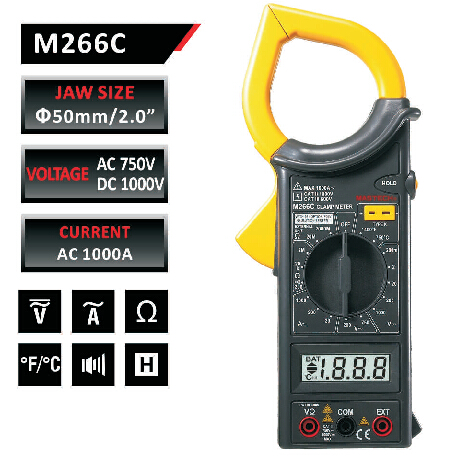

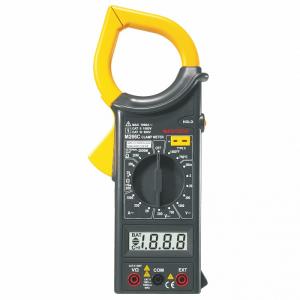

M266C - Digital AC Clamp Meter

The meter is completely portable, LCD, 3 1/2 digit clamp meter with insulation test function ( with option 500V insulation tester unit ). It has been designed according to IEC-1010 concerning electronic measuring instruments with an overvoltage category( CATll 1000V CAT III 600V ) and pollution 2 and safety requirements for hand-held current clamps for electrical measurement and test.

M266C Digital AC Clamp Meter Features
? Display 2000 counts
? Jaw Opening Ф50mm/2.0"
? Continuity Buzzer <100?
? Data Hold
? Low Battery Display

M266C Digital AC Clamp Meter General Specifications
? Power Supply: 1 x 9V 6F22 Battery
? Product Size : 235mm x 96mm x 46mm / 9.25" x 3.8"  1.8"
? Product Weight: 268g/0.59lb
? Certification: RoHS
? Safety Rating: CAT II 1000V/ CAT III 600V

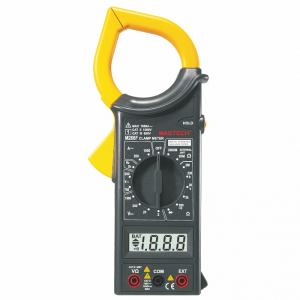

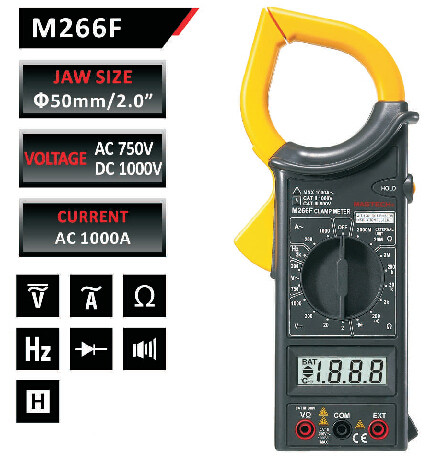

M266F - Digital AC Clamp Meter

M266F Digital AC Clamp Meter Features
? Display 2000 counts
? Jaw Opening Ф50mm/2.0"
? Diode open voltage 2.7V
? Continuity Buzzer <100?
? Data Hold
? Low Battery Display

M266F Digital AC Clamp Meter General Specifications
? Power Supply: 1 x 9V 6F22 Battery
? Product Size: 235mm x 96mm x 46mm / 9.25" x 3.8" x 1.8"
? Product Weight: 268g/0.59lb
? Certification: CE / ETL / RoHS
? Safety Rating: CAT II 1000V/ CAT III 600V
