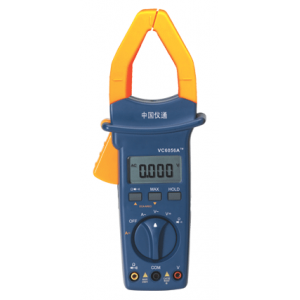

TM Automatic Range 1000A AC/DC Clamp Meter - VC6065A
? 1/2 digit display
? 2000 count resolution
? 200A/1000A Current measurements
? Resistance measurement up to 20MΩ
? Diode and Continuity tests
? Data hold and Max recording
? Auto power-off
- Model Number: VC6065A
- Quantity:
- - +
Product Specification
VC6065A AC/DC Clamp Meter General Features
? 1/2 digit display
? 2000 count resolution
? 200A/1000A Current measurements
? Resistance measurement up to 20MΩ
? Diode and Continuity tests
? Data hold and Max recording
? Auto power-off
VC6065A AC/DC Clamp Meter Specifications
|
Function |
Range |
Resolution |
Accuracy |
|
DC Voltage |
200mV~600V |
0.1mV |
±(0.8%+3d) |
|
AC Voltage |
2V~600V |
1mV |
±(1.2%+3d) |
|
DC Current |
200A/1000A |
0.1A/1A |
±(2.5%+5d) |
|
AC Current |
200A/1000A |
0.1A/1A |
±(2.5%+5d) |
|
Resistance |
200Ω~2MΩ/20MΩ |
0.1Ω~1kΩ/10kΩ |
±(1.0%+3d) |
