Electrochemical Carbon Monoxide Sensor (CO Sensor) - CM9

? Carbon monoxide detection range: 0-10000ppm
? Detection accuracy: < 3%
? Output current: 0.8-2.0nA / ppm
? Response time: <30S
? High concentration recovery time: <30M
? Repeatability: 1% F.S
? Hysteresis: 1% F.S
? Working temperature: -10 ~ +60°C
? Working humidity: 5 - 99% RH

Model Number: CM9
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

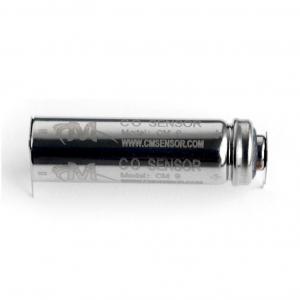

CM9 Carbon Monoxide Sensor

CM9 Carbon Monoxide Sensor Features:
1. More than ten years long life, electrochemical principle
2. Low sensitivity to ethanol;
3. Can reduce the influence of various interference gases, good linear output characteristics;
4. Consistency is very good;
5. The carbon monoxide gas selectivity and repeatability is very good;
6. The sensor signal output and the concentration of carbon monoxide gas into a linear relationship;
7. The leading production technology and new advanced materials;
8. Electrolyte pollution, materials comply with RoHS requirements;
9. Strong anti-interference;
10. The shell thicker will never rust, the new material used in component feet is conductive.

CM9 Carbon Monoxide Sensor Typical Applications:
1. Carbon monoxide detector alarms,
2. Car alarms, smart furniture
3. Commercial carbon monoxide detector
4. Industrial carbon monoxide detector
5. Indoor parking ventilation control
6. Portable carbon monoxide concentration meter
7. CO detection alarm

CM9 Carbon Monoxide Sensor Main parameters:

Length	49.3±0.1mm
Height	19.3±0.1mm
Body diameter	14.3±0.1mm
Pin Length	3.45±0.1mm
Pin spacing	49±0.5mm
Detection accuracy	< 3%
Detection range	0-10000
Output current	0.8 - 2.0 nA/ppm
Response time	< 30s
High concentration recovery time	< 30M
Working humidity	5 - 99%RH
Repeatability	1% F.S
Hysteresis	1% F.S
Drift	1
Sensitivity	1
Material	Green polymer
Protection class	IP55
Operating temperature	-10 ~ 60 °C
Lifetime of product	10 years
