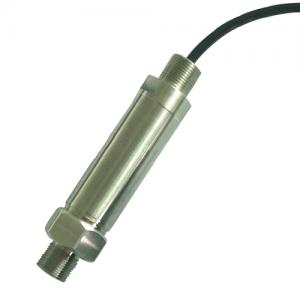

Explosion Proof Pressure Transmitter - JYB-KGH

? ?Measuring range: any range within 0～20MPa
? ?Power supply: DC 24V (12V～32V)
? ?Medium temperature: -20°C～60°C
? ?Environment temperature: -20°C～60°C
? ?Response time: ≤ 50ms
? ?Hysteresis and repeatability: ± 0.2％F.S
? ?Nonlinear: ± 0.2％F.S

Model Number: JYB-KGH

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

JYB-KGH Explosion Proof Pressure Transmitter Characteristic
? Imported diffusion silicon core , suitable for precision measurement of different medium and different temperature stress
? Explosive-proof design, full stainless steel laser welding, anticorrosive, shockproof, waterproof
? Through electrical equipment thermal stability and hot and humid experiment of class one
? Strong resistance of overload ability, impact and interference
? Reverse polarity, anti surge, and over-voltage over-current protection
? Long working life, high reliability
? Coal mining explosive-proof certification

JYB-KGH Explosion Proof Pressure Transmitter Use
Methane and coal mine's pressure measurement; pressure system control of mine fan, diesel locomotive, ventilation tunnel, mine pumping station equipment and so on; used for high purity hydrogen or containing a high percentage of hydrogen mixture gas

JYB-KGH Explosion Proof Pressure Transmitter Parameters

Measuring range	any range within 0～20MPa, 5kPa is the smallest range
Power supply	DC 24V (12V～32V)
Load capacity	current mode ≤500Ω (DC 24V) voltage mode ≥3KΩ
Accuracy class	grade 0.2 (range from 70kPa to 5MPa)
Accuracy class	grade 0.5 (range from 5kPa to 70kPa; 5 MPa to 20 MPa)
Medium temperature	-20°C～60°C
Environment temperature	-20°C～60°C
Response time	≤ 50ms
Hysteresis and repeatability	± 0.2％F.S
Long-term stability	± 0.5％F.S/y
Nonlinear	± 0.2％F.S
Over load pressure	two times of range
Electrical connection	cable
Process connection	M20 x 1.5 and others
The external parts material	Ordinary stainless steel/316stainless steel
Ex mark	ExdI Mb
Ex No.	CNEX13.2772
