Flange Mount Gear Tooth Speed Sensors - GS101201-GS101202 Series

? From near zero speed up to 15 kHz sensing capability
? Plastic flange-mount housing
? Vibration: Sinusoidal, 15 g max from 40 Hz to 2 kHz
? Compatible with unregulated power supply
? Operating Temperature: -40 to 125 ?C (-40 to 257 ?F)
? RoHS compliant
? IP67
? Typical air gap of 1.5 mm

Model Number: GS101201-GS101202 Series
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

GS101201 - GS101202 Sensors

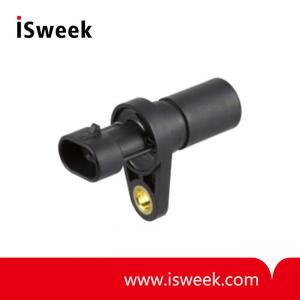

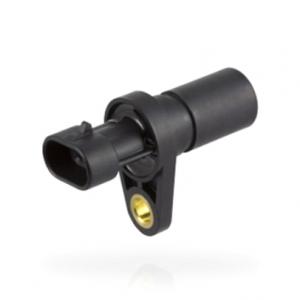

Flange mount gear tooth speed sensor

GS101201-GS101202 Series?Gear Tooth Speed Sensors?Description
The GS101201-GS101202 series gear tooth speed sensors are Hall Effect devices designed for use in applications where ferrous edge detection/near zero speed sensing is needed. They provide a sinking output current.

GS101201-GS101202 Series?Gear Tooth Speed Sensors?Features
? From near zero speed up to 15 kHz sensing capability
? Plastic flange-mount housing
? Compatible with unregulated power supply
? RoHS compliant
? ?IP67
? Typical air gap of 1.5 mm*

GS101201-GS101202 Series?Gear Tooth Speed Sensors?Typical Applications
? Speedometers
? Anti-lock braking systems
? Exercise equipment
? CNC machine tools

GS101201-GS101202 Series?Gear Tooth Speed Sensors?Environmental Specifications

Vibration	Sinusoidal, 15 g max from 40 Hz to 2 kHz
Mechanical Shock Resistance ? ? ? ? ? ? ??	50 g
Maximum Speed Detection	15 kHz
Operating Temperature	-40 ?C to 125 ?C (-40 ?F to 257 ?F)
Storage Temperature	-40 ?C to 125 ?C (-40 ?F to 257 ?F)
Ingress Protection	IP67

GS101201-GS101202 Series?Gear Tooth Speed Sensors?Electrical Specifications

Operating Supply Voltage	5 to 24 VDC
Maximum Input Voltage	30 VDC
Maximum Reverse Voltage	24 VDC
Supply Current	3 mA typ., 6 mA max ? ? ? ? ? ? ? ? ? ?
Output Sink Current	20 mA max
Recommended Pull-Up Resistor	See chart

GS101201-GS101202 Series?Gear Tooth Speed Sensors?Mechanical Specifications

Housing Material	Glass Reinforced Thermoplastic
Maximum Installation Torque Limit	5.65 Nm (50 in lb) on threads
Operating Air Gap / Sensing Distance* ?1.5 mm (0.06") * With recommended target type; see drawing?	1.5 mm (0.06")
Sensor Orientation	Not sensitive
Possible O-ring size	AS568A-114 (varies with application) ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ??
