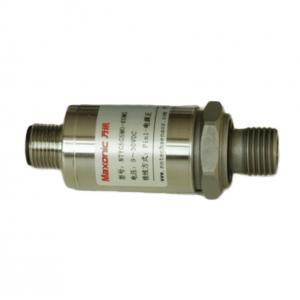

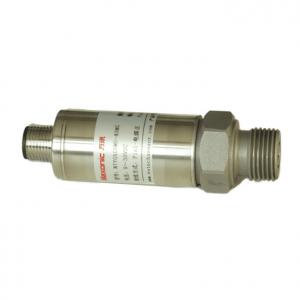

General Industrial Pressure Sensors - NTYG Series

? Range: Minimum 0-350kPa, Maximum 0-70MPa
? Accuracy: ±0.5%FS, ±0.25%FS
? Stability: ±0.25%FS/per year
? Pressure cycles: One hundred million times full pressure cycles
? Overload pressure: 2 times the rated pressure
? Burst Pressure: 5 times the rated pressure
? Composite accuracy: ±0.5%FS
? Housing material: 304 stainless steel

Model Number: NTYG Series

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

NTYG Series Pressure Sensors Description
NTYG Series general industrial pressure transmitter uses strain silicon technology and traditional metal strain gauge principle, the new technology uses silicon strain gauges and temperature sintering process, making the pressure sensor sensitivity increase more than five times, and then with a proprietary digital amplifier and digital.

temperature
compensation circuit, the electrical characteristics of the sensor , temperature characteristics and long-term stability is guaranteed. Sensor interface and housings are made of stainless steel, with good corrosion resistance. This product can be widely used in industrial, aviation, aerospace, automotive, medical and other fields of refrigeration.

NTYG Series Pressure Sensors Features
? Measure range: Minimum 0-350kPa, Maximum 0-70MPa
? 17-4PH stainless steel isolation, all stainless steel construction
? No internal pressure port O-rings, no welding, no silicone oil, no leakage risks
? High reliability, high overload
? Shape structure diversification

NTYG Series Pressure Sensors Application
? Air compressor, Natural gas compressor
? Hydrogen, oxygen equipment, air conditioning and refrigeration equipment
? High power diesel engine
? Industrial and civil pumps
? Injection molding machines, die casting machines, construction machinery
? Household appliances and other consumer products in pressure measurement

NTYG Series Pressure Sensors Specification

Item	Specification
Range	Minimum 0-350kPa, Maximum 0-70MPa
Accuracy	±0.5%FS, ±0.25%FS
Stability	±0.25%FS/per year
Pressure cycles	One hundred million times full pressure cycles
Overload pressure	2 times the rated pressure
Burst Pressure	5 times the rated pressure (Maximum 150MPa)
Composite accuracy	±0.5%FS (in the range of temperature compensation)
Housing material	304 stainless steel
Output	4-20mA	1~5V, 0.5~4.5V	0~50mV, 0~100mV	Proportional output
Power supply	10-30VDC	10-30VDC	5VDC	5VDC
Output Impedance	>10K Ohms	<100 Ohms	<5mA	<10mA
Frequency response	(-3dB): DC to 250Hz	(-3dB): DC to 1kHz	(-3dB): DC to 5kHz.min	(-3dB): DC to 1kHz
Operating temperature	-40~125℃
Temperature compensation	0~70℃, -25~85℃
Insulation resistance	>100M/250VDC
