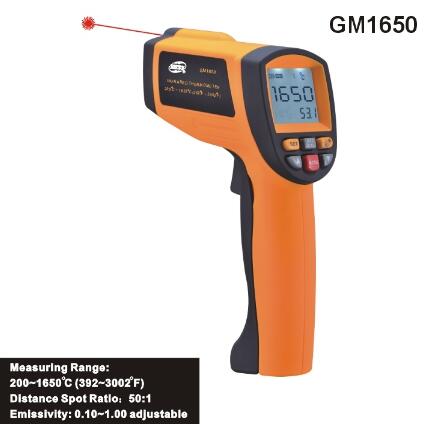

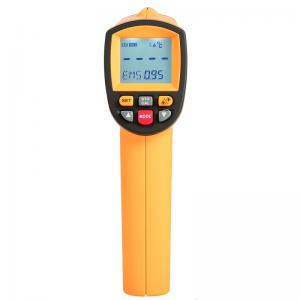

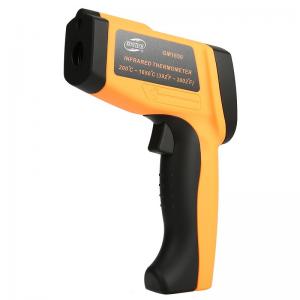

Infrared Thermometer - GM1650

? Temperature range: 200 ~ 1650℃ ( 392~3002℉)
? Accuracy: ±1.5% or ±1.5℃
? Repeatability: 1% of reading or 1°C
? Distance to Spot size: 50:1
? Emissivity: 0.1~1.00 adjustable
? Resolution: 0.1℃/℉
? Response Time: 500ms
? Wavelength: 8-14μm
? Operating Temperature： 0 ~40°C (32 ~ 104°F)

Model Number: GM1650
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

GM1650 Infrared Thermometer Introduction
This infrared thermometer is used for measuring the temperature of the object's surface, which is applicable for various hot, hazardous or hard-to-reach objects without contact safely and quickly.

This unit consist of Optics, Temperature Sensor Signal amplifier, Processing circuit and LCD Display. The Optics collected the infrared energy emitted by object and focus onto the Sensor. Then the sensor translates the energy into an electricity signal. This signal will be turned out to be digital shown on the LCD after the signal amplifier and processing circuit.

GM1650 Infrared Thermometer Specification

Temperature range	200~1650°C (392~3002°F)
Accuracy	±1.5 (±2.7 ) or ±1.5% Whichever is greater
Resolution	0.1°C or 0.1°F
Repeatability	1% of reading or 1°C
Response time	500 mSec, 95% response
Spectral response	8-14 μm
Emissivity	0.10~1.00 Adjustable (0.95 Preset)
Distance to Spot size	50:1
Operating Temperature	0 ~40°C (32 ~ 104°F)
Operating Humidity	10~95%RH non-condensing up to 30°C (86°F)
Storage Temperature	-20 ~ 60°C (-4 ~ 140°F)
Power	9V Alkaline or NiCd battery
Typical battery life (Alkaline)	Non-laser mode: 22 hrs; Laser Models: 12 hrs
Weight	270g
Dimension	14160200mm
