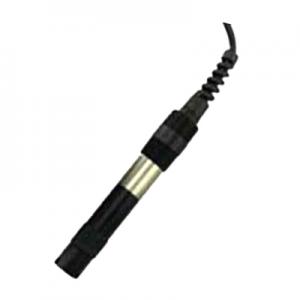

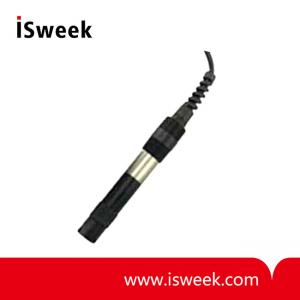

Integrated Industrial Dissolved Oxygen Sensor - DOG-202/DOG-203
? Measuring range: 0 ~ 19.99mg/L
? Resolution: 0.01mg/L
? Accuracy: ±2%F.S.
? Working Temperature: 0~45 ℃
? Working Pressure: <0.1 MPa
? Protection class: IP65 / IP68
- Model Number: DOG-202/DOG-203
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
DOG-200 series integrated oxygen sensor (membrane / polarography)
This product is one of the dissolved oxygen transmitter, protection class IP65 / IP68, can be installed directly into the formula, suitable for all occasions need to measure dissolved oxygen, such as water treatment, aquaculture and other industries.
DOG-202/DOG-203 Dissolved Oxygen Sensor Technical Specifications
| Model | DOG-200 |
|
Measuring
range |
0 ~ 19.99mg/L |
|
Resolution |
0.01mg/L |
|
Accuracy |
±2%F.S. |
|
Power supply |
DOG-202: 12VDC~24VDC ±10%
DOG-203: 24VDC ±10%
|
|
Output signal |
DOG-202:Rs485(Modbus/RTU)
DOG-203:4～20mA Two wire isolation (signal)
|
|
Installation |
3/4" NPTthread |
