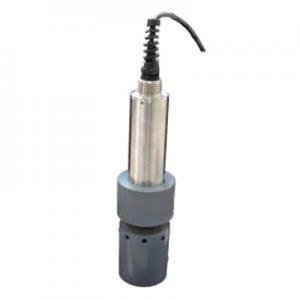

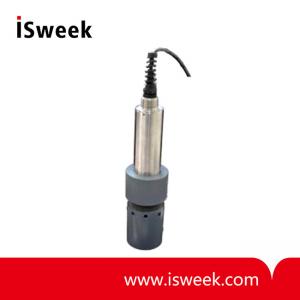

Integrated Water and Oil Sensor - OIL-200 Series
? Measurement Range: 0 ~ 2500ppb
? Resolution: 1ppb
? Accuracy: <±10%
? Working temperature: 0~50℃.
? Working Pressure: <0.1MPa
? Power Supply: 5 ~ 12VDC ±10%
? Signal Output: Rs485 (Modbus/RTU)
- Model Number: OIL-200 Series
- Data Sheet:
- Quantity:
- - +
Product Specification
OIL-200 Series Integrated Water and Oil Sensor Description
This product is an integrated optical transmitter oil in water using ultraviolet absorption measurement principle, the main measurement of aromatic hydrocarbons in water; protection class IP68, can be installed directly into the formula for measuring the redox potential of all the needs of the occasion, such as sewage treatment marine environmental monitoring and other industries.
OIL-200 Series Integrated Water and Oil Sensor Technical Parameters
| Measurement Range | 0 ~ 2500ppb | ||
| Resolution | 1ppb | ||
| Accuracy | <±10% | ||
| Working temperature | 0~50℃. | ||
| Working Pressure | <0.1MPa | ||
| Power Supply | 5 ~ 12VDC ±10% | ||
| Signal Output | Rs485 (Modbus/RTU) | ||
| Wetted Material | SS316L | ||
| Installation | Input type |
