Low Cost Submersible Pressure Transducer - TDH80 Series

? Advanced piezoresistance technology
? All stainless steel construction
? Industry-standard 4-20mA output
? Pressure ranges 0-2.5, 0-10 and 0-15 PSIG (custom ranges available)
? Accuracy of 0.5%
? Long-term stability
? Nose cone or NPT thread available

  • Model Number: TDH80 Series
  • Data Sheet: Date Sheet File
Quantity:
- +

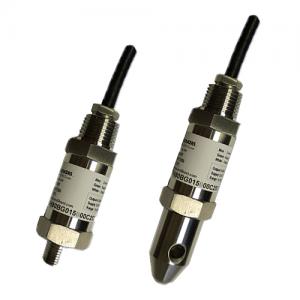

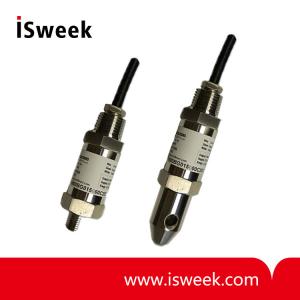

  • Low Cost Submersible Pressure Transducer
  • Low Cost Submersible Pressure Transducer
Mouse over image to zoom
Share:

Product Specification

TDH80 Series Submersible Pressure Transducer FEATURES
? Advanced piezoresistance technology
? All stainless steel construction
? Industry-standard 4-20mA output
? Pressure ranges 0-2.5, 0-10 and 0-15 PSIG (custom ranges available)
? Accuracy of 0.5%
? Long-term stability
? Nose cone or NPT thread available

TDH80 Series Submersible Pressure Transducer SPECIFICATIONS

Performance @ 25°C (77°F)

Accuracy

 ±0.5% FS

Stability

 <±0.2% FS/year, typical

Over pressure protection

 1.5X Rated Pressure

Burst Pressure

 3X minimum

Pressure Cycles

 >4 Million

Environmental Data

Operating temp

 -20 to +80°C (-40 to +176°F)

Compensated range

 -10 to 75°C (+14 to +167°F)

Electrical Data

Excitation

 12-36 Vdc

Loop resistance @ 24 Vdc

 ≤750 Ohm

Zero offset

 <±1.0% of FS

Span tolerance

 <±1.0% of FS

Physical data

Diaphragm material

 316SS

Sealing material

 Fluoro Rubber

Body material

 316SS

Cable pull strength

 300 lb.

Pressure connection

 Bullet-Nose, 1/4”NPT

Electrical Connection

 Molded, vented submersible cable (Polyethylene outer jacket)
